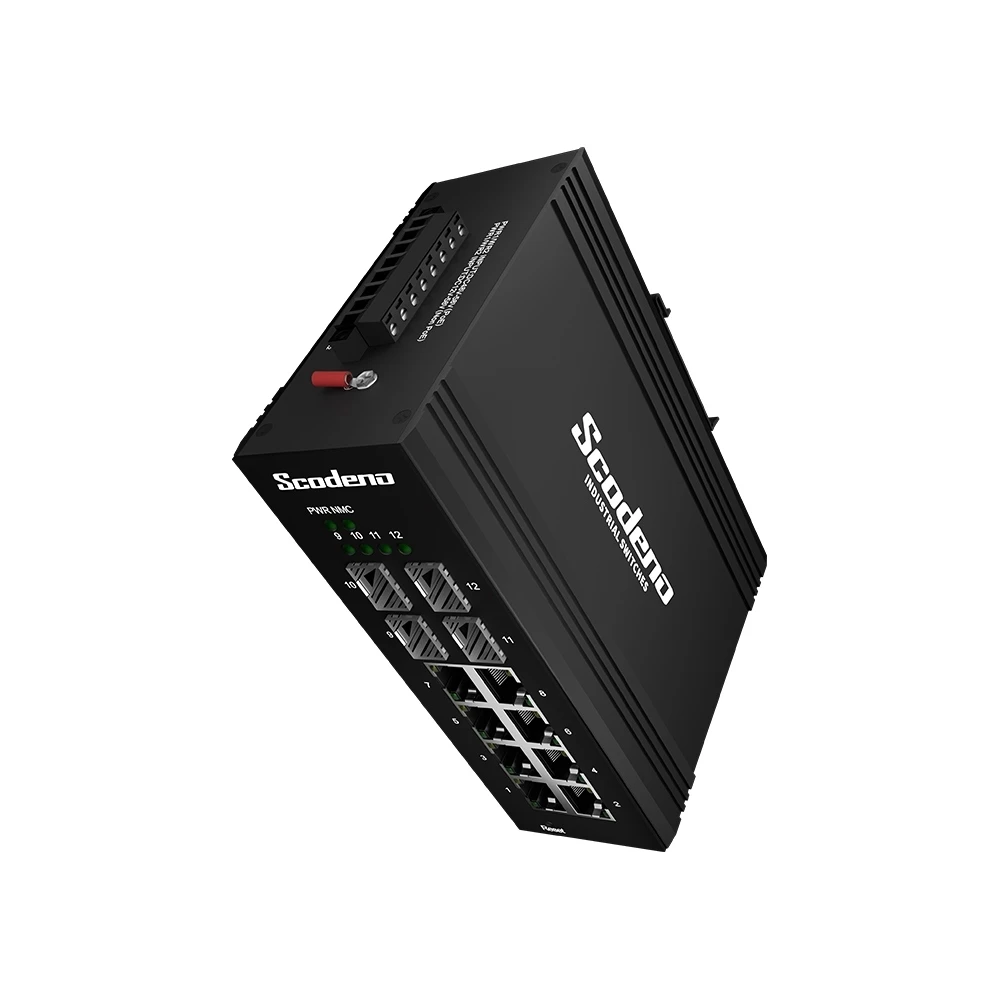

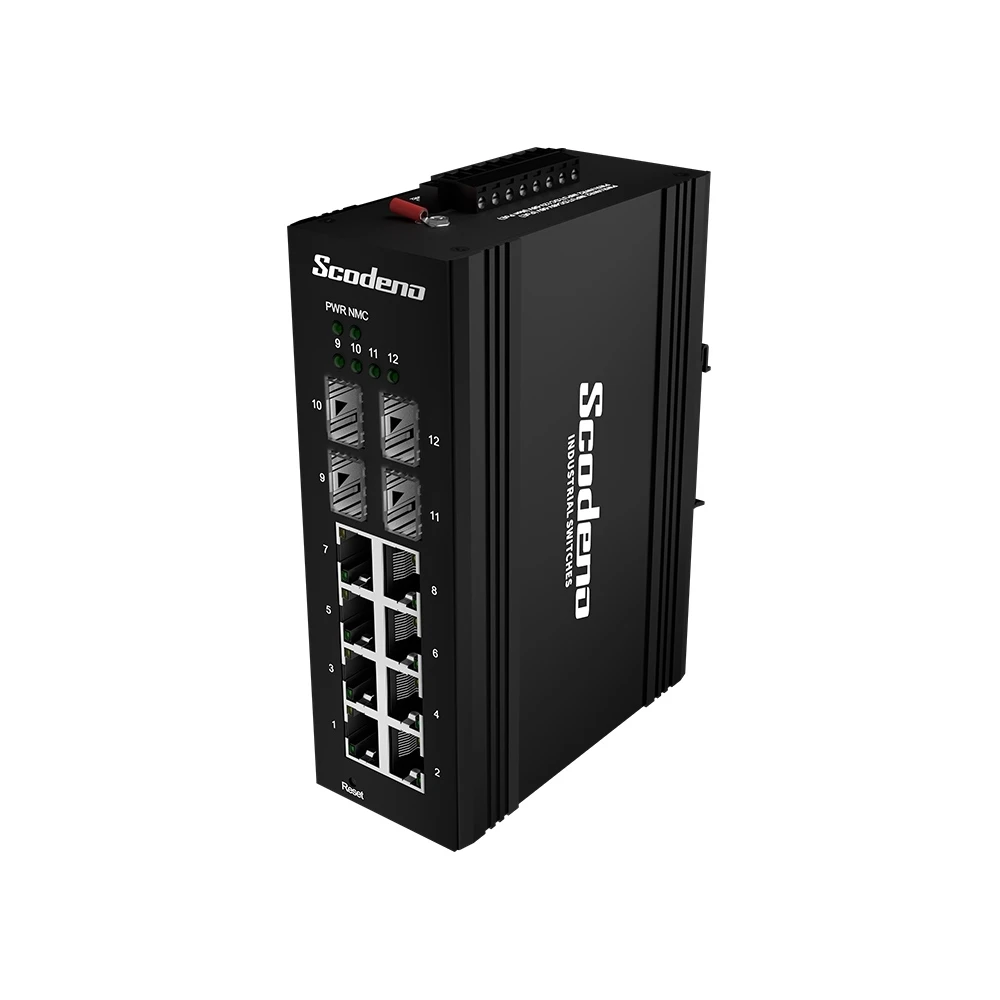

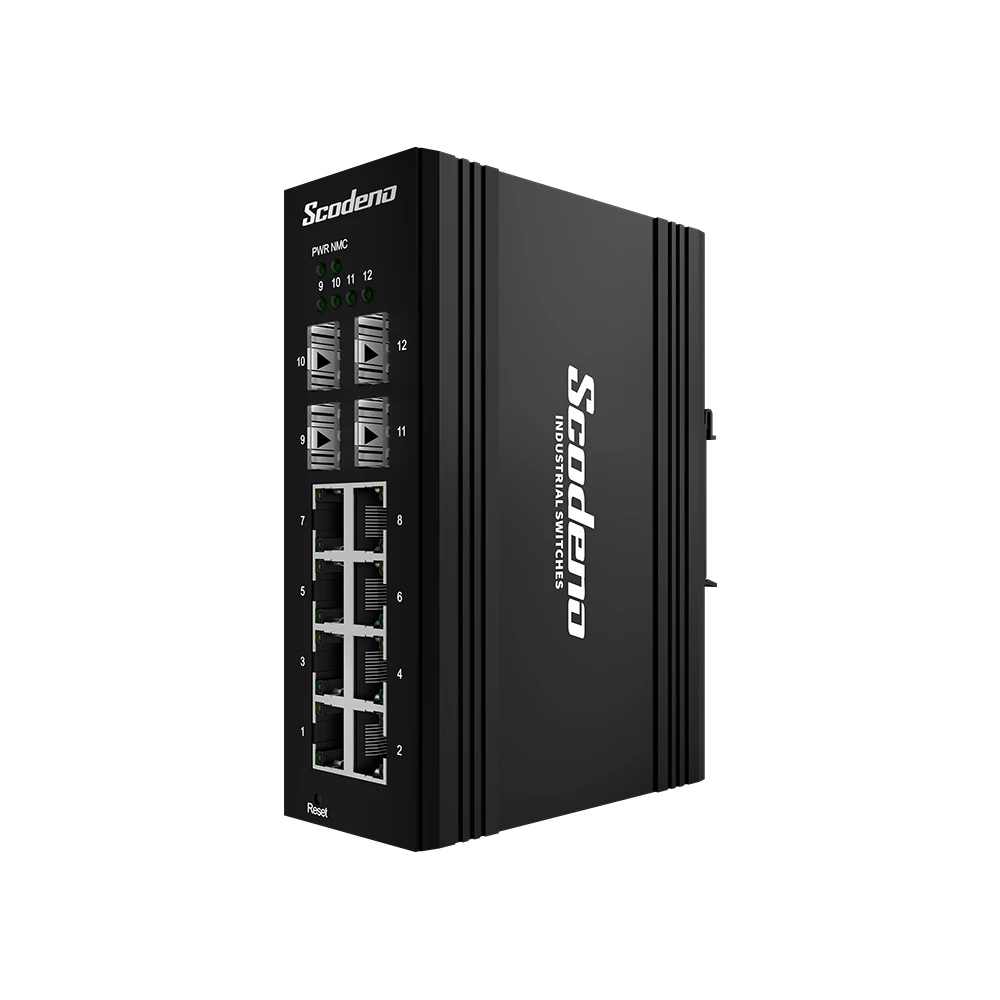

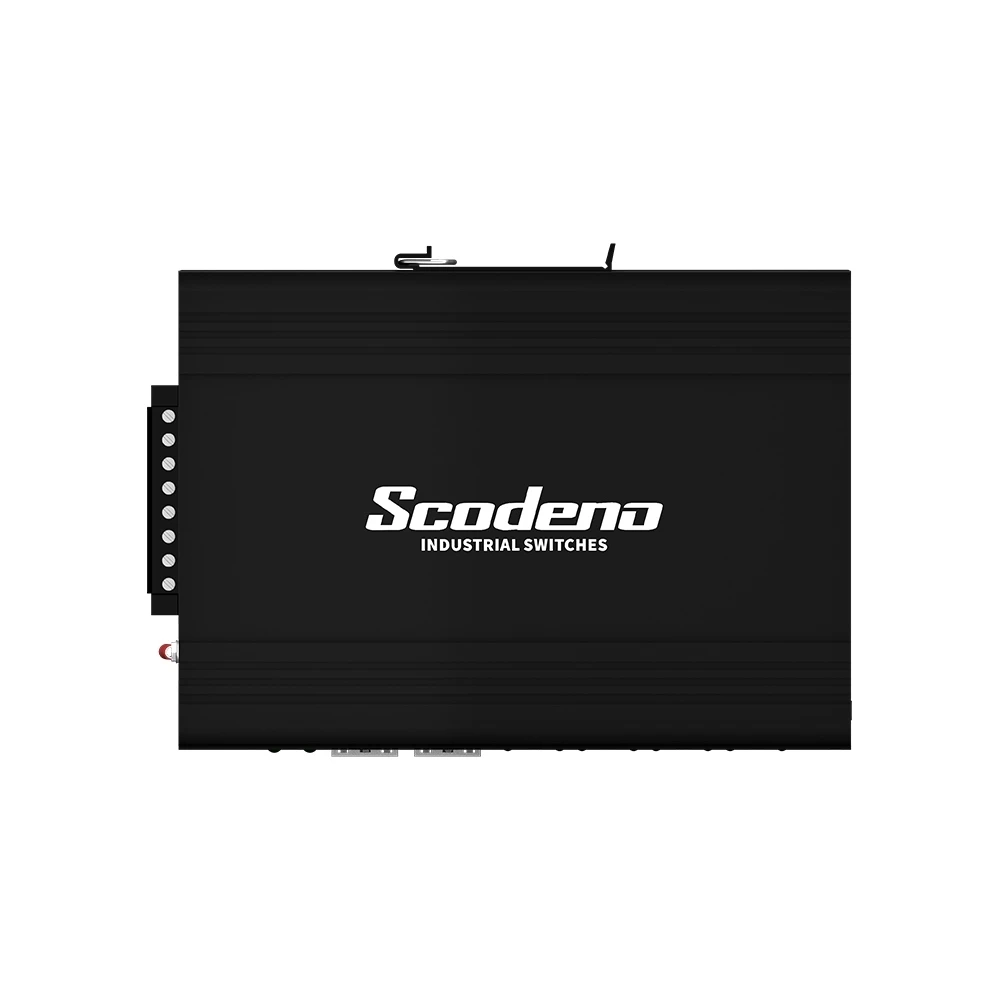

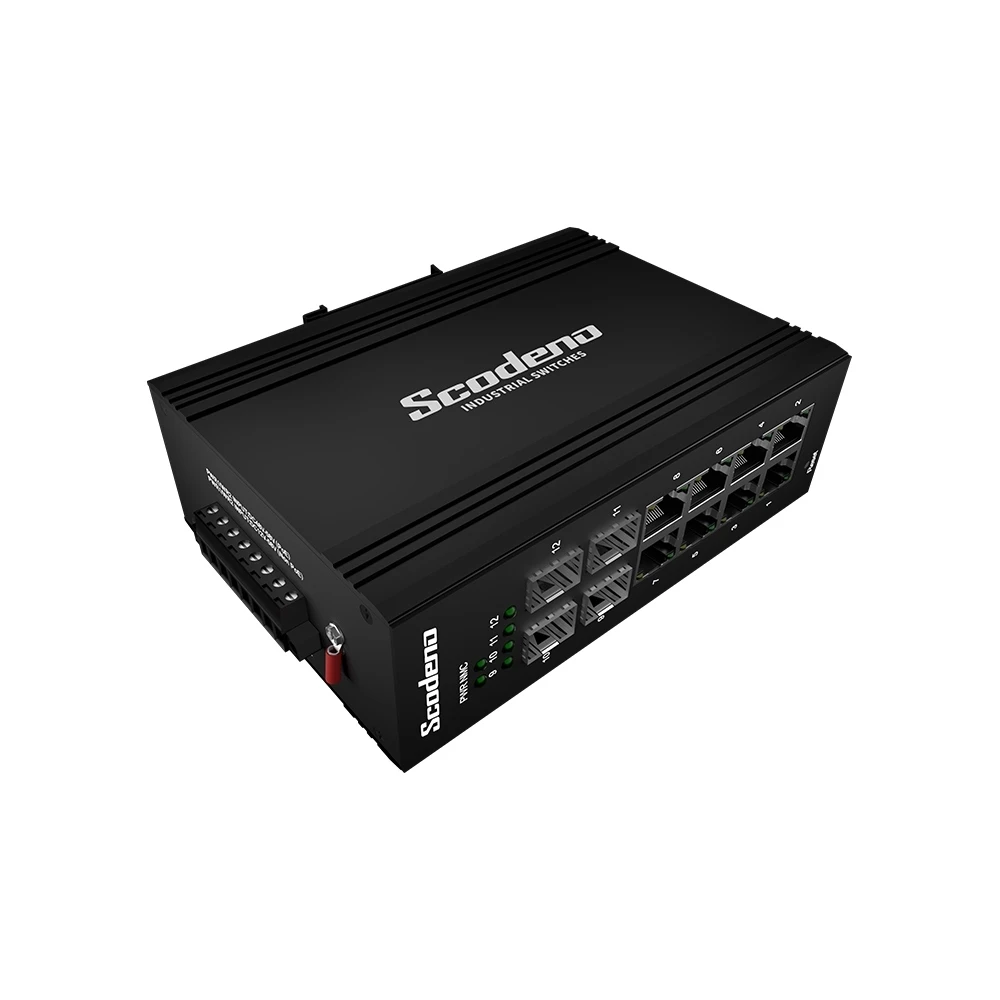

XPTN-9000-75-4GX8GT-V Switch Công nghiệp Scodeno 12 cổng 4*1000 Base-X, 8*10/100/1000 Base-T None PoE

The equipment is 4*1000 Base-X, 8*10/100/1000 Base-T Managed Industrial Ethernet fast switch, through the fanless cooling circuit design, wide range working environment temperature, high protection level and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality, and integrated switching, safety and various rich protocols, simultaneously supported The public Ethernet multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

SPECIFICATION

Provider Mode Ports:

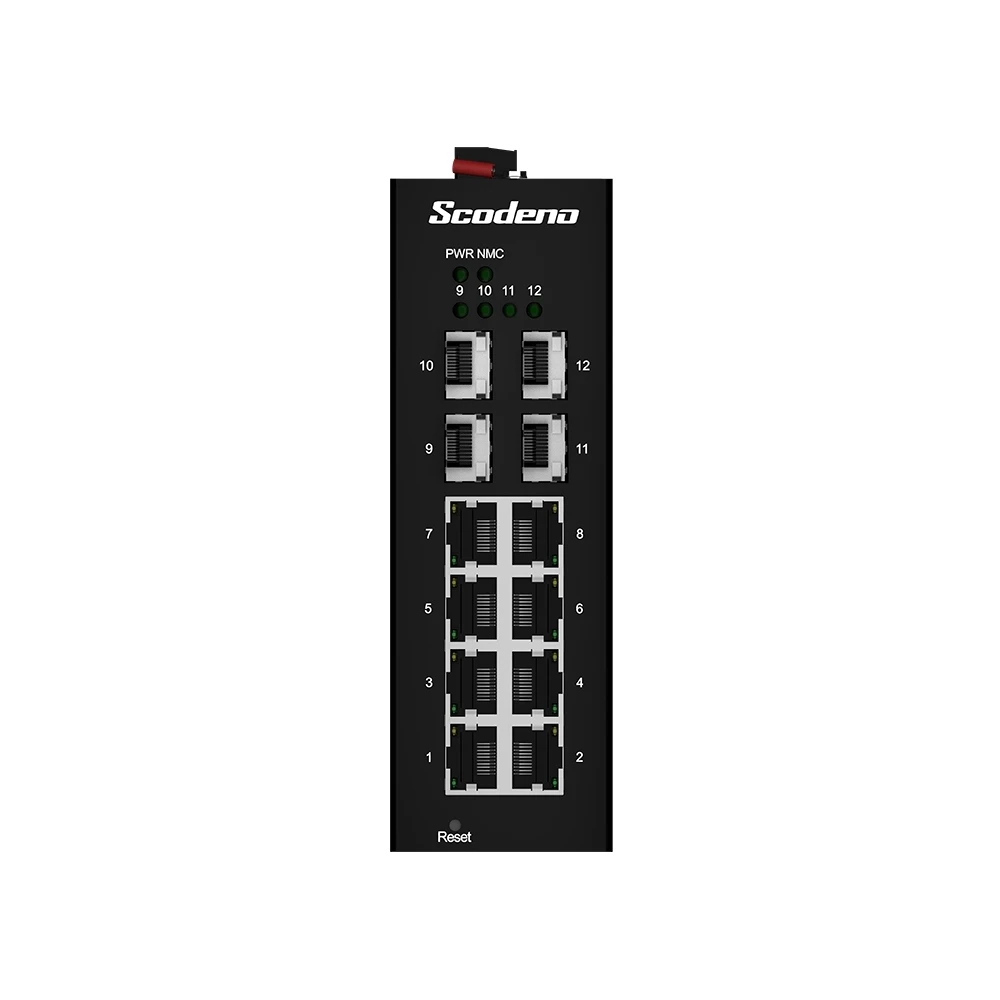

• Fixed port: 4*1000 Base-X， 8*10/100/1000 Base-T
• Management Port: Support Console
• Power interface: Phoenix terminal, dual power input
• LED Indicators: PWR, Link/ACT LED

Cable Type & Transmission Distance:

• Twisted-pair: 0-100m (CAT5e,CAT6)
• Monomode optical fiber: 20/40/60/80/100KM
• Multimode optical fibre: 550m

Network Topology:

• Ring topology: Support
• Star topology: Support
• Bus topology: Support
• Tree Topology: Support
• Hybrid topology: Support

Electrical Specifications:

• Input voltage: DC 12-58V
• Total Power consumption: ＜10W

PoE Support:

• PoE port: None
• PoE Protocol: None
• Pin Assignment: None
• PoE Management: None
• PoE++ Support (Optional): Unsupport
• PoE ++ port: None
• PoE ++ Protocol: None
• PoE ++ Pin Assignment: None
• PoE ++ Management: None

Layer 2 Switching:

• Switching capacity: 36G
• Packet forwarding rate: 26.78 Mpps
• MAC address table: 16K
• VLAN: Support 4K
• Buffer: 12M
• Forwarding delay: <10 µs
• MDX/MIDX: Support
• Flow control: Support
• Jumbo Frame: Support 10Kbytes
• Spanning Tree: Support STP/RSTP/MSTP
• Ring Protocol: Support ERPS
• Link Aggregation: Support 12 group
• Multicast: Support IGMP Snooping
• Port Mirroring: Support
• Storm Control: Support
• Interface Counters: Support
• QINQ: Support
• 802.1X: Support
• MAC Authentication: Support
• Port Isolation: Support
• RMON: Support
• NTP Client: Support
• DHCP CLIENT: Support
• DHCP snooping: Support
• Ping/tracert test: Support
• Dying gasp: Support
• DDM: Support

Convergence:

• ACL: Support ACL 500; Support IP standard ACL; Support MAC extended ACL; Support IP extended ACL
• QoS: Support QoS re-marking, priority mapping; Support SP, WRR queue scheduling; Support egress rate-limited, egress rate-limit; Support Policy-based QoS

Management:

• CLI: Support
• Console: Support
• Management IP: Support IPv4/IPv6
• Telnet/SSH: Support
• WEB management: Support
• SNMP: Support SNMPv1/v2c/v3
• User Management: Support
• System Log: Support
• Configuration File Download/Upload: Support
• Upgrade Firmware: Support

Environment:

• Operating temperature: -40℃~+75℃ The device is tested for 4 hours at temperatures in 85°C
• Storage temperature: -40℃~+85℃
• Relative humidity: 5%~95% (non-condensing)
• Thermal methods: Fanless, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions:

• Product size: 48X104X143mm

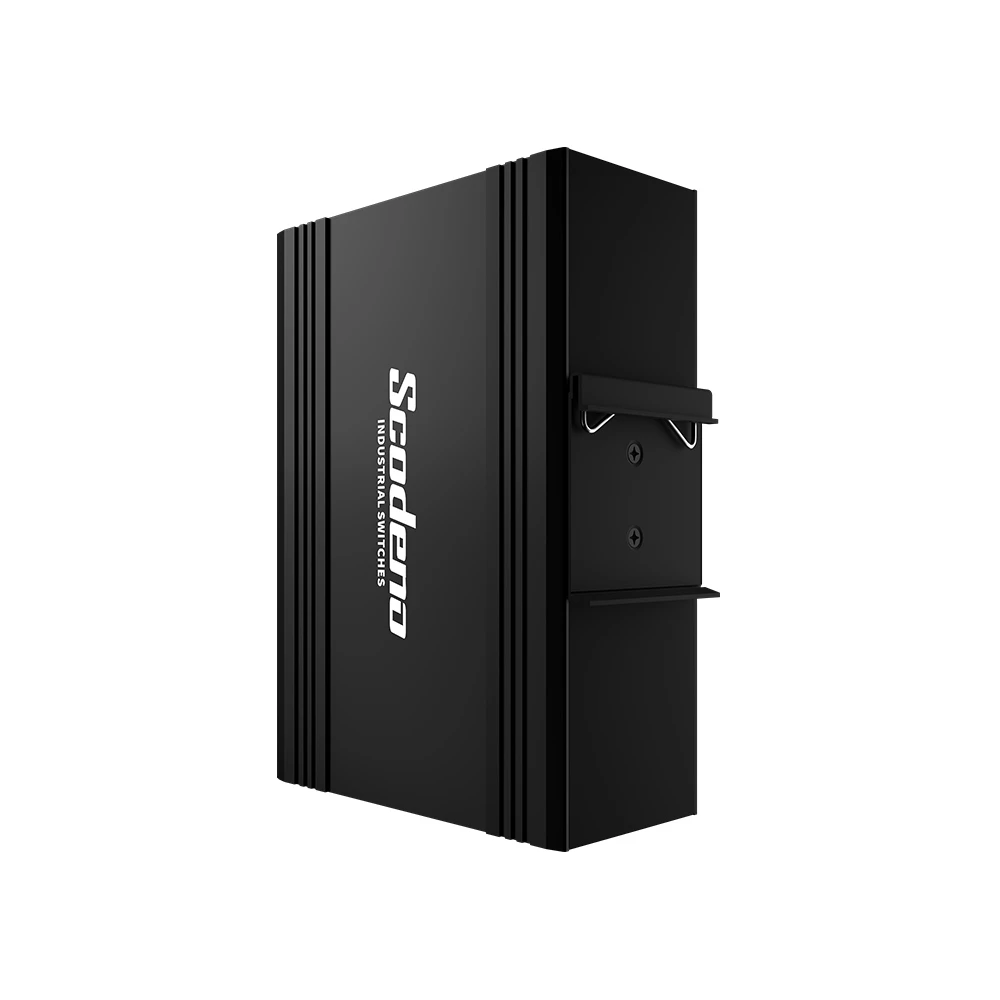

• Installation Method: DIN-rail
• Weight: 0.58 Kg

EMC & INGRESS PROTECTION:

• IP Level: IP40
• Surge protection of Power: IEC 61000-4-5 Level X (6KV/6KV) (8/20 µs)
• Surge protection of Ethernet port: IEC 61000-4-5 Level 4 (4KV/4KV) (10/700 µs)
• RS: IEC 61000-4-3 Level 3 (10V/m)
• EFI: IEC 61000-4-4 Level 3 (1V/2V)
• CS: IEC 61000-4-6 Level 3 (10V/m)
• PFMF: IEC 61000-4-8 Level 4 (30A/m)
• DIP: IEC 61000-4-11 Level 3 (10V)
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m

Authentication:

• Certificates: CCC/CE/FCC/RoHS
• Accessories: Device, Terminals, Specification, Certificate, Adapter (optional)
