XPTN-9000-45-2FX4TP Switch Công nghiệp Scodeno 6 cổng 2*100 Base-FX, 4*10/100 Base-TX PoE

This device is 2*10/100 Base-X+4 *10/100 Base-T Industrial Ethernet POE Switches. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

SPECIFICATION

Provider Mode Ports:

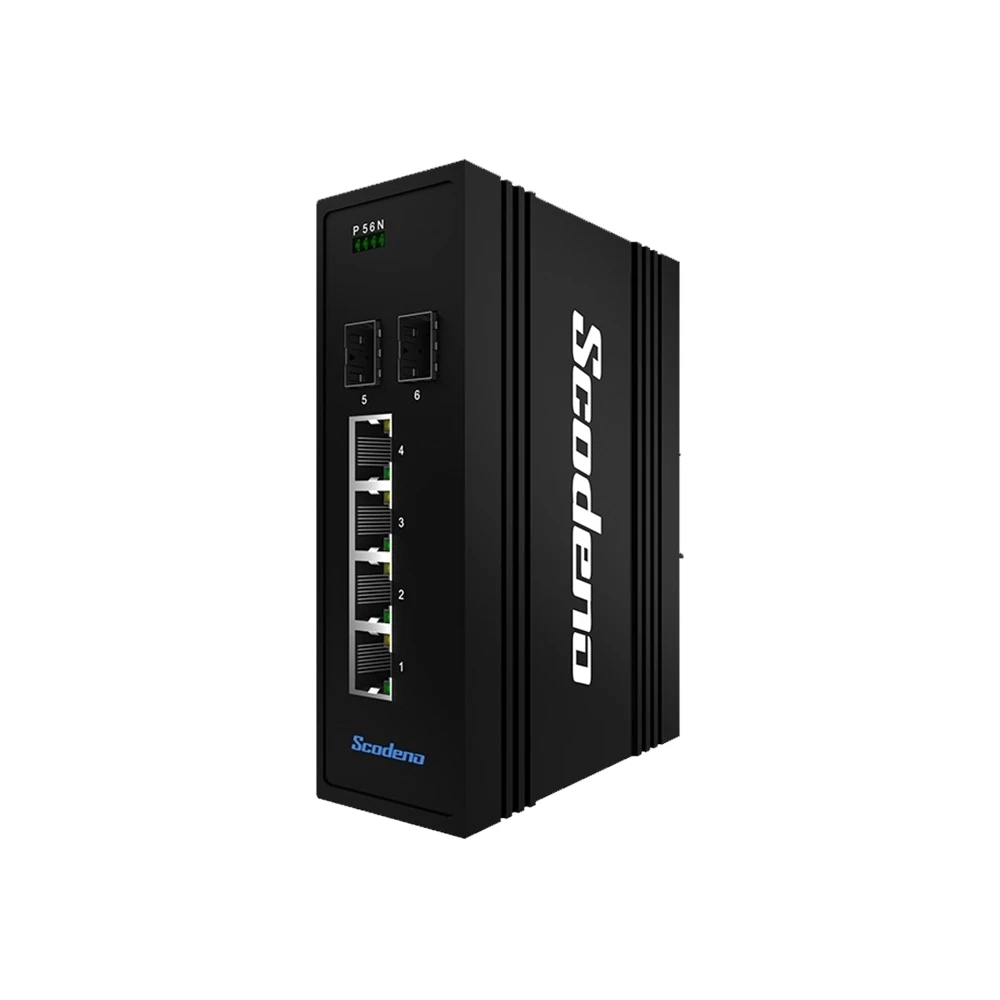

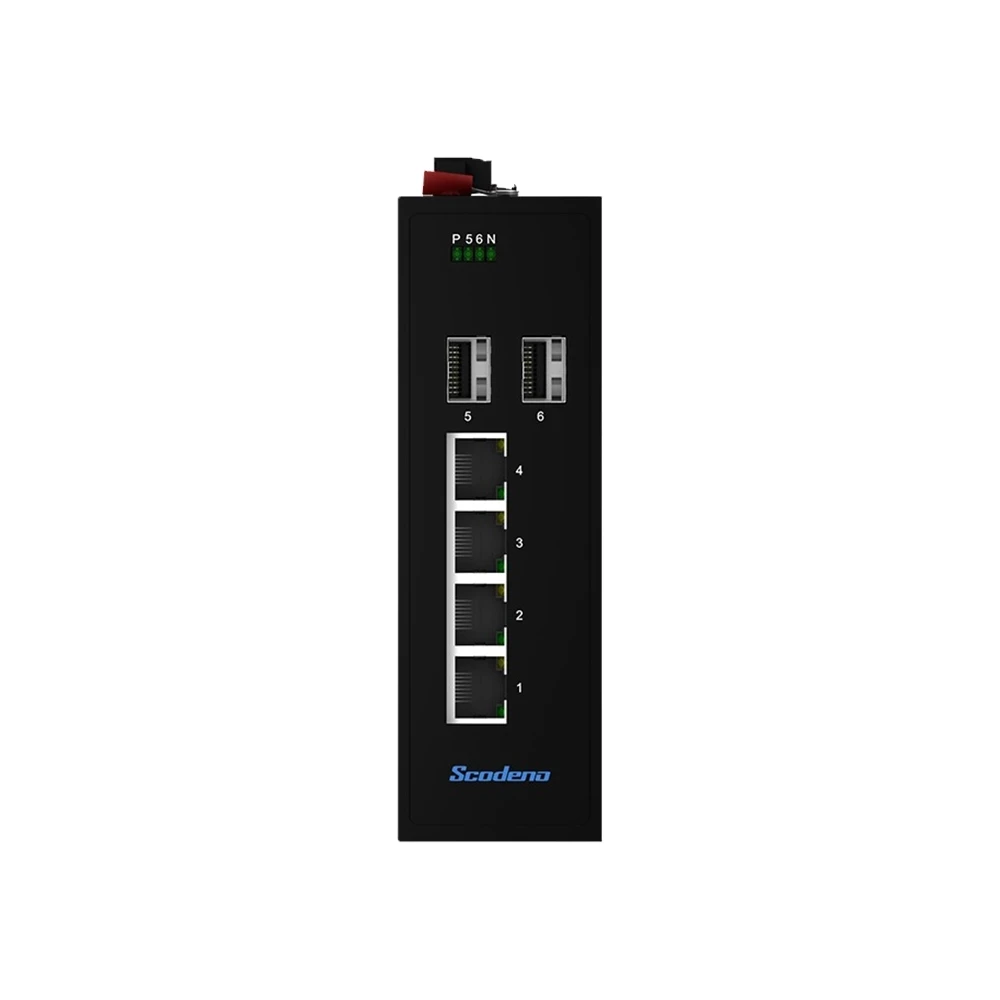

• Fixed port: 2*10/100Base-X+4 *10/100Base-T
• Management Port: None

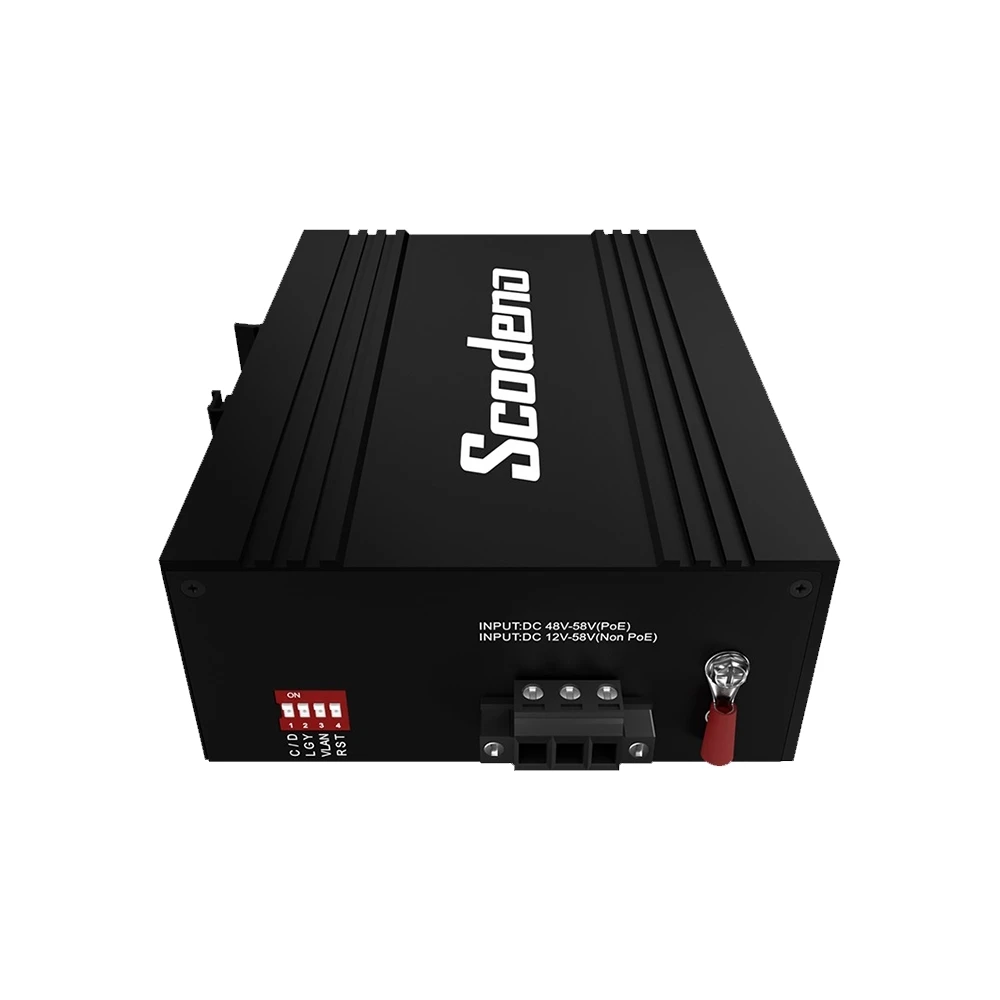

• Power interface: Phoenix terminal, redundant dual power supply
• LED Indicators: PWR, Link/ACT LED

Cable Type & Transmission Distance:

• Twisted-pair: 0-100m (CAT5e, CAT6)
• Monomode optical fiber: None
• Multimode optical fiber: None
• DIP Switch:

1 LFP: None

• 2 LGY: None
• 3 VLAN: None
• 4 BSR: None

Network Topology:

• Ring topology: Unsupported
• Star topology: Support
• Bus topology: Support
• Tree Topology: Support
• Hybrid topology: –

Electrical Specifications:

• Input voltage: DC 48-58V
• Total Power consumption: < 125 W
• PoE Model: Support

PoE Support:

• PoE port: 1-4 Ports
• PoE Protocol: IEEE802.3 af/at
• Pin Assignment: 1,2,3,6
• PoE Management: –

Layer 2 Switching:

• Switching capacity: 14 G
• Packet forwarding rate: 10.416 Mpps
• MAC address table: 8 K
• Buffer: 1M
• Forwarding delay: <5 µs
• MDX/MIDX: Support
• Flow control: Unsupported
• Jumbo frame: Support 10K Bytes
• Storm Control: Support
• Port-Isolation: Support
• Remote PD Reset: –

Environment:

• Operating temperature: -30℃~+75℃
• Storage temperature: -30℃~+75℃
• Relative humidity: 10 %~90% non-condensing
• Thermal methods: Fanless, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions:

• Product size: 46*104*143mm

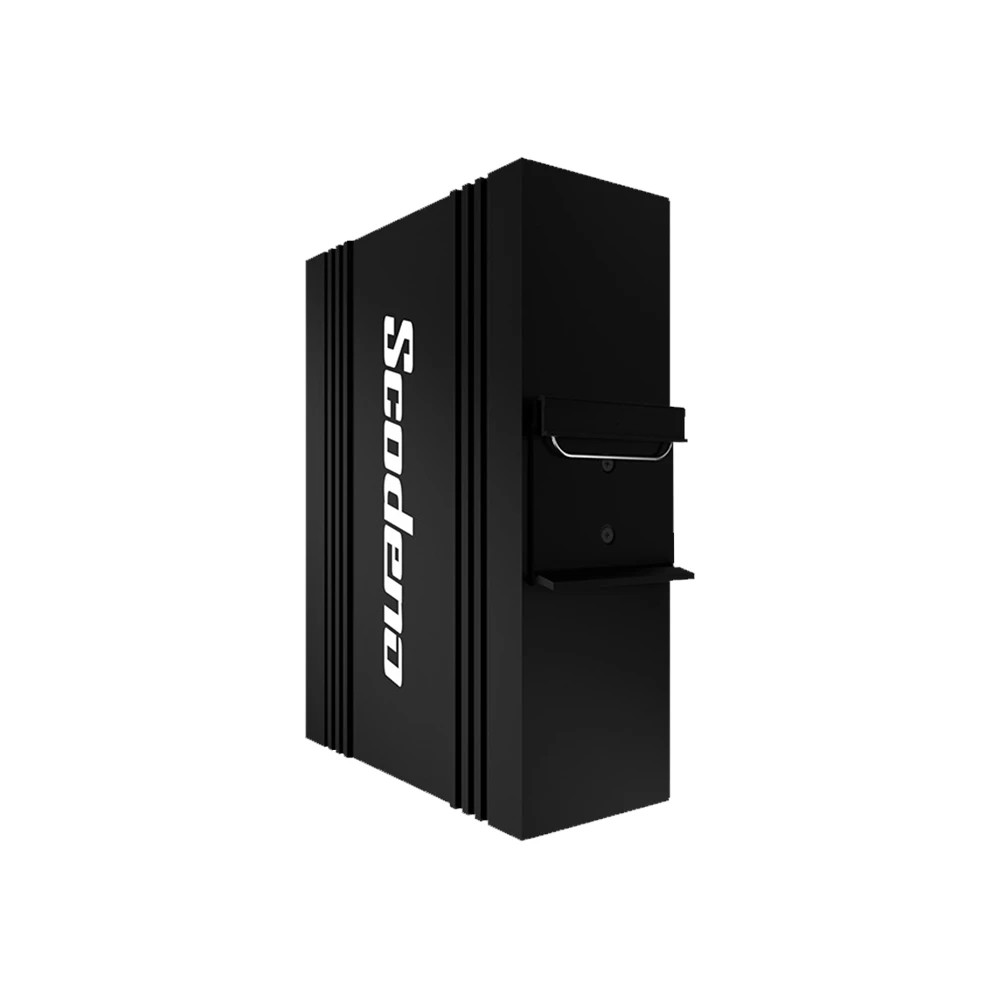

• Installation Method: DIN rail
• Weight: 0.5 Kg

EMC & Ingress Protection:

• IP Level: IP40
• Surge protection of Power: IEC 61000-4-5 Level X (6KV/6KV)
• Surge protection of Ethernet port: IEC 61000-4-5 Level X (6KV/6KV)
• RS: IEC 61000-4-3 Level 3 (10V/m)
• EFI: IEC 61000-4-4 Level 3 (1V/2V)
• CS: IEC 61000-4-6 Level 3 (10V/m)
• PFMF: IEC 61000-4-8 Level 4 (30A/m)
• DIP: IEC 61000-4-11 Level 3 (10V)
• EMI: –
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m
• Authentication:

Certificates: CCC, CE, FCC, RoHS

• Accessories: Device, Terminals, Specification, Certificate, Adapter (optional)
