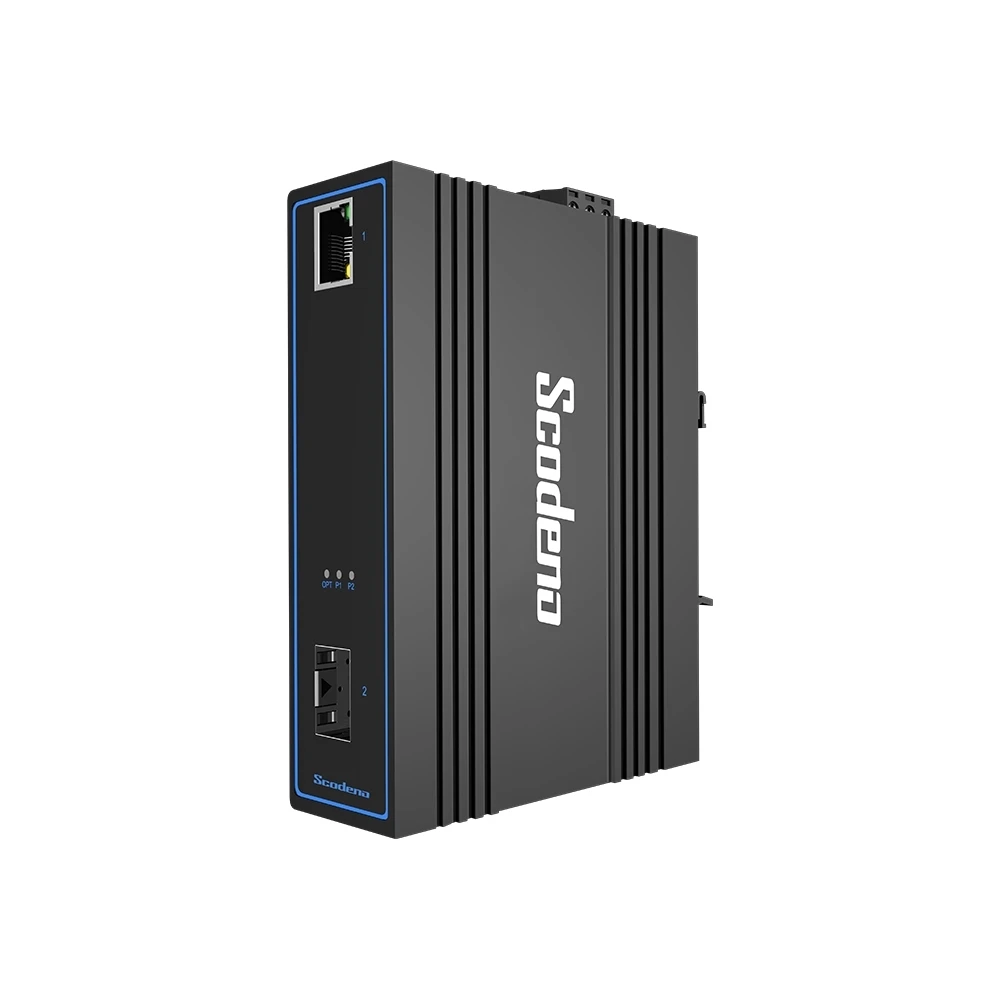

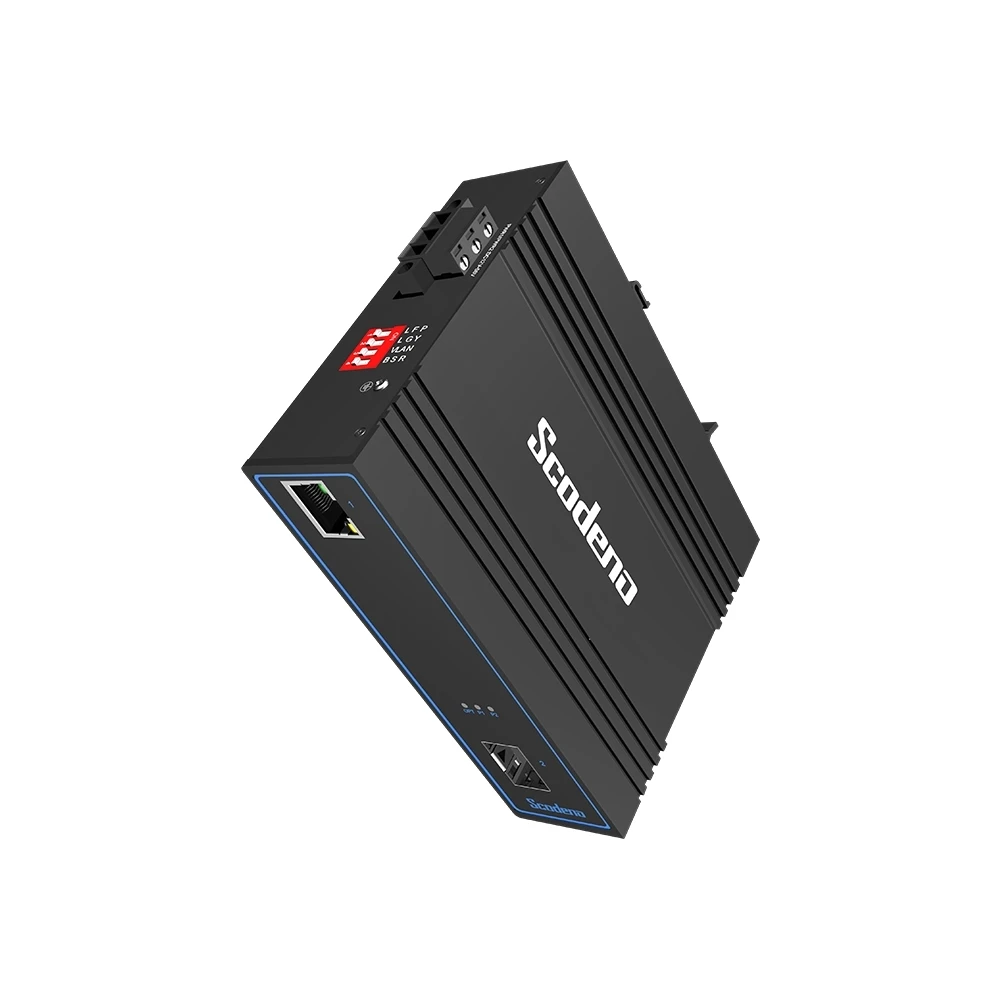

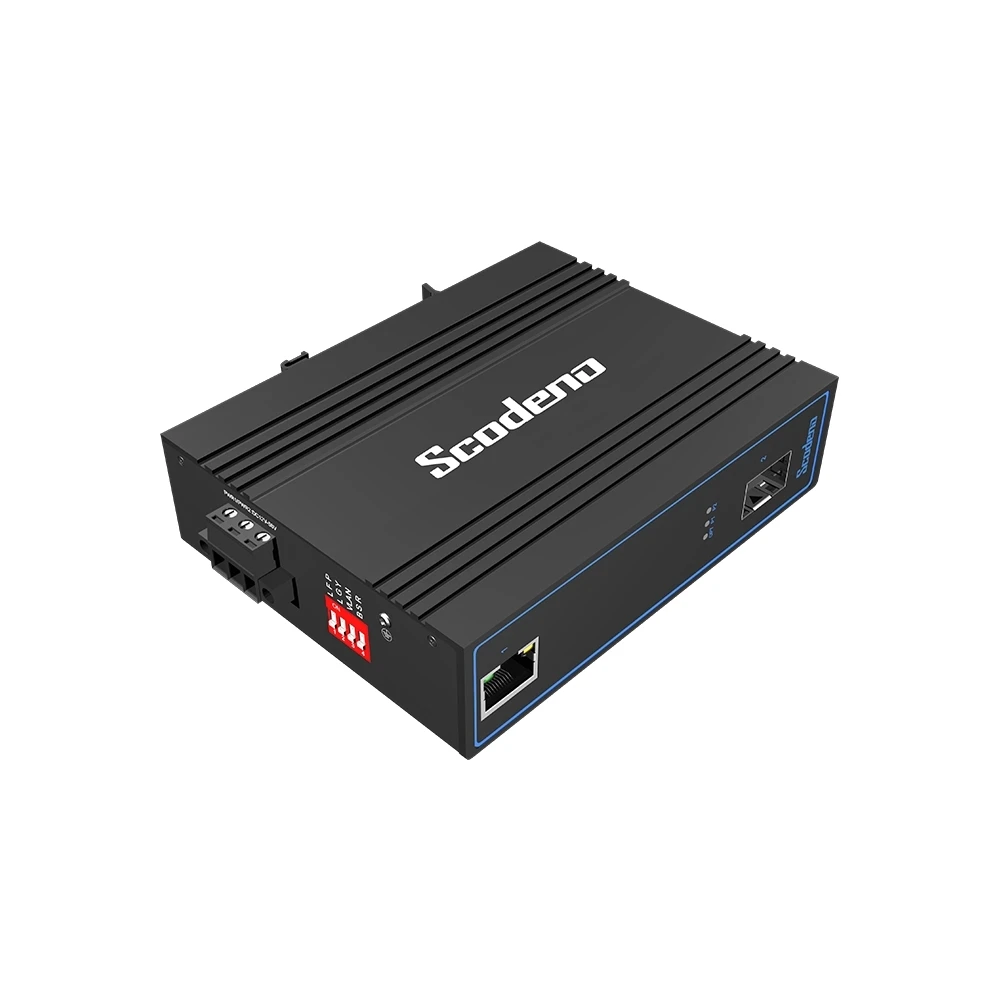

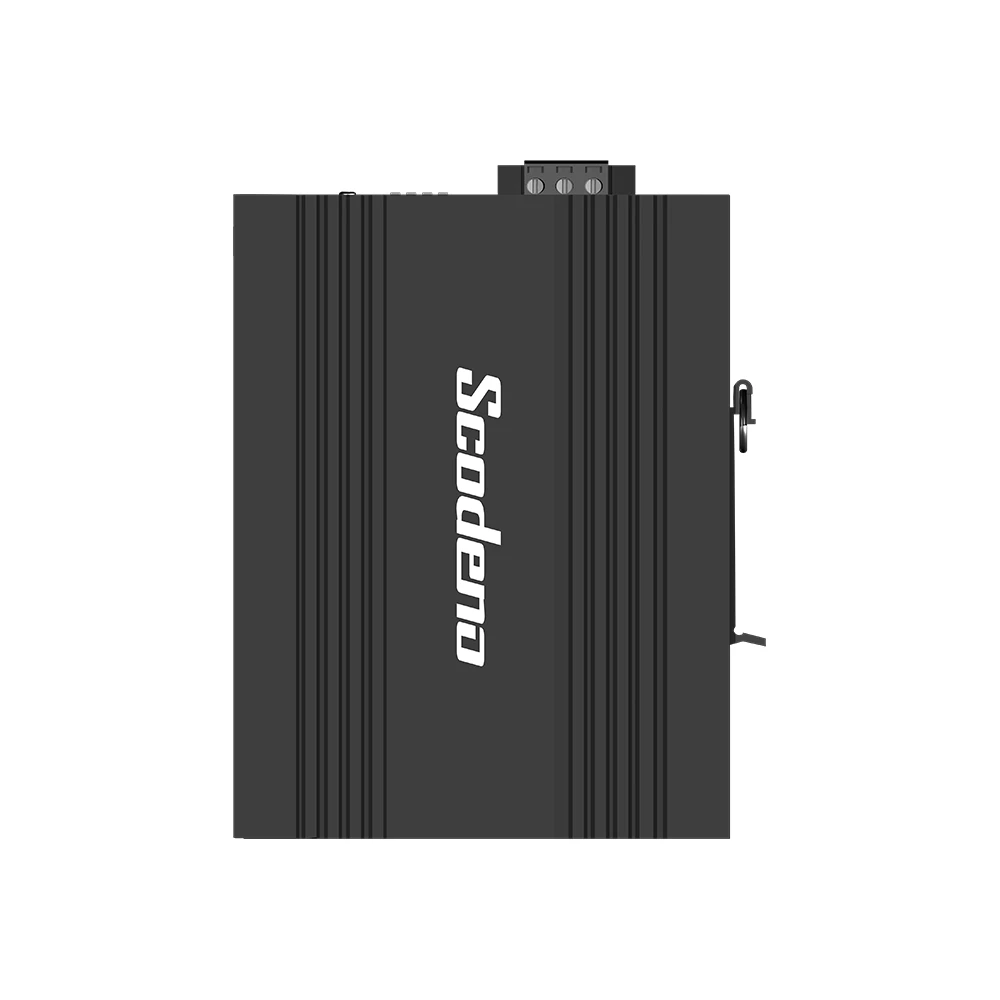

XPTN-9000-45-1FX4TX Switch Công nghiệp Scodeno 5 cổng 1*100 Base-FX, 4*10/100 Base-TX None PoE

This device is a 1*100M, 1*10/100M RJ45 Industrial Ethernet switches, PoE is optional. Through fan less cooling circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial grade products such as high / low temperature resistance and lightning protection, and enhances the reliability and security of industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

SPECIFICATION

Provider Mode Ports:

• Fixed port: 1*100Base-X，4*10/100Base－T
• Management Port: None
• Power interface: Phoenix terminal, dual power redundancy
• LED Indicators: P1/P2,OPT

Cable Type & Transmission Distance:

• Twisted-pair: 0-100m (CAT5e, CAT6)
• Monomode optical fiber: 20/40/60/80/100KM
• Multimode optical fiber: 550m

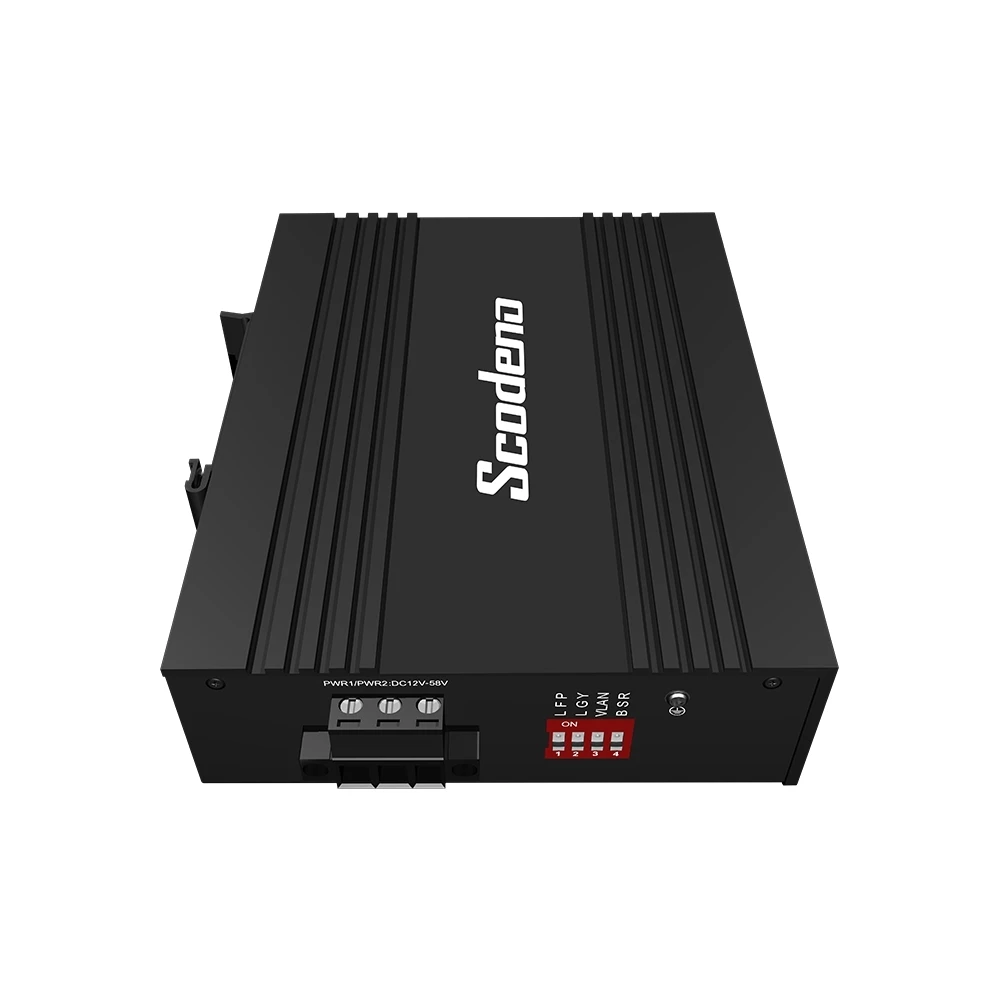

• DIP Switch:

1 LFP: Remote PD Reset

• 2 LGY: Standard / non standard PoE selection
• 3 VLAN: Port Isolation
• 4 BSR: Storm suppression

Network Topology:

• Ring topology: Unsupported
• Star topology: Support
• Bus topology: Support
• Tree Topology: Support
• Hybrid topology: –

Electrical Specifications:

• Input voltage: DC12-58V
• Total Power consumption: <5W
• PoE Model: –

PoE Support:

• PoE port: None
• PoE Protocol: None
• Pin Assignment: None
• PoE Management: –

Layer 2 Switching:

• Switching capacity: 1G
• Packet forwarding rate: 0.744 Mpps
• MAC address table: 2K
• Buffer: 768K
• Forwarding delay: <5 µs
• MDX/MIDX: Support
• Flow control: Unsupported
• Jumbo frame: Support 2K bytes
• Storm Control: Support
• Port-Isolation: Support
• Remote PD Reset: Support

Environment:

• Operating temperature: -30℃~75℃
• Storage temperature: -30℃~75℃
• Relative humidity: 5%~95% non-condensing
• Thermal methods: Fanless, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions:

• Product size: 31*91*118mm

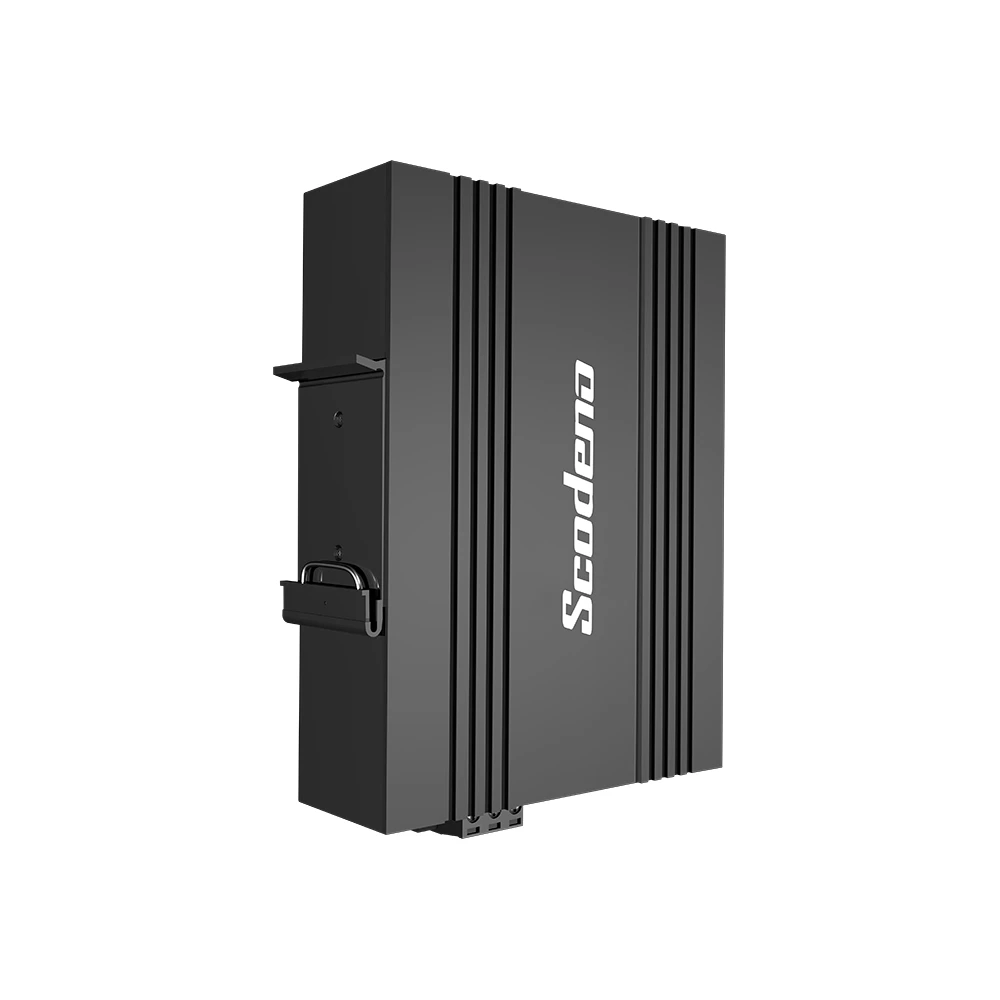

• Installation Method: Din-rail
• Weight: About 0.4 Kg

EMC & Ingress Protection:

• IP Level: IP40
• Surge protection of Power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20 µs)
• Surge protection of Ethernet port: IEC 61000-4-5 Level 3 (4KV/2KV) (10/700 µs)
• RS: –
• EFI: –
• CS: –
• PFMF: –
• DIP: –
• EMI: –
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m
• Authentication:

Certificates: CCC/CE/FCC/RoHS

• Accessories: Device, Terminals, Specification, Certificate, Adapter (optional)
