SUREFIRE 4 DC CORDLESS 220V (P/N: 01-2564)
Còn 100 trong kho
Facer/Beveller Sub-Assembly, Cordless DC Motor, (2) Li-Ion Batteries, 220VAC Charger, Cutter Head, Mandrel with one (1) Full Support Pad Set, Carrying Case, Operators Tool Kit, and Manual. Est. shipping weight: 40 lbs.
*SPECIFY PIPE SIZE & SCH AT TIME OF ORDER*
3
People watching this product now!
Phương thức thanh toán:
Mô tả

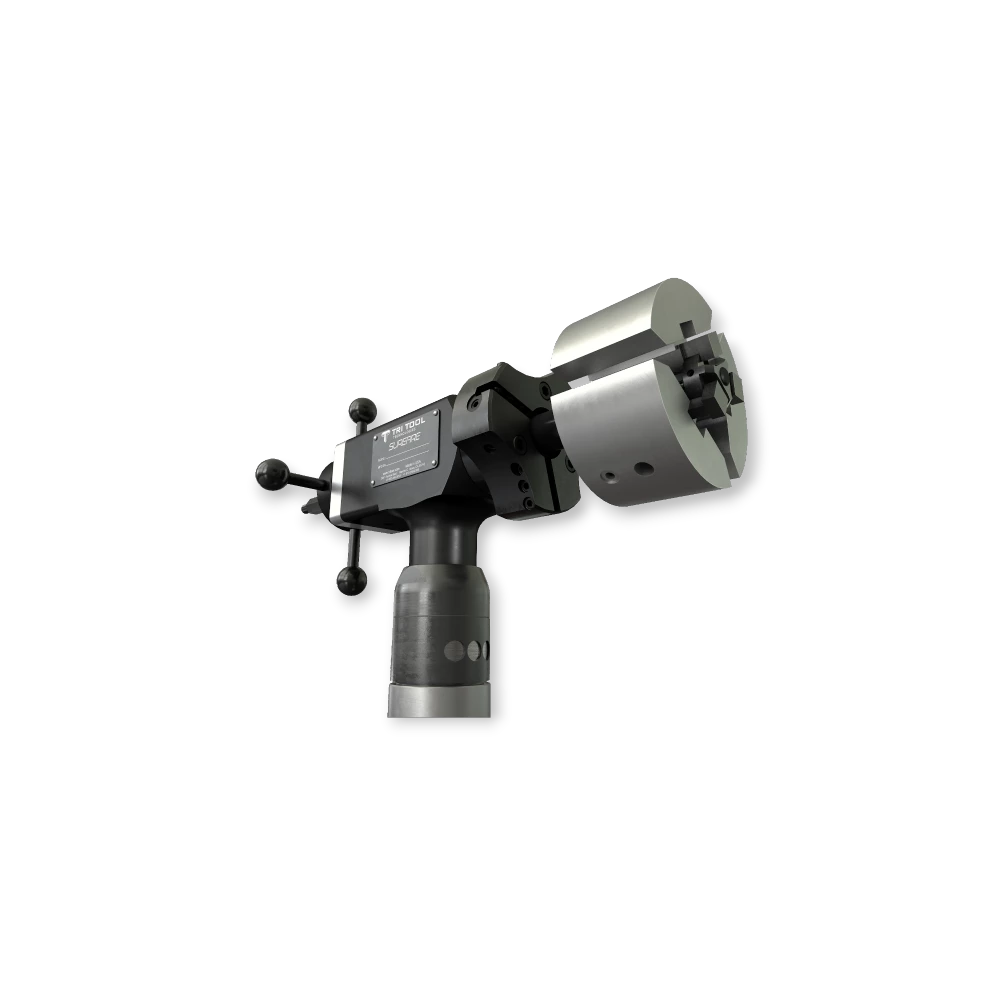

SUREFIRE 4 DC CORDLESS 220V
SUREFIRE 4 THIN-WALL END PREP SYSTEM
Pipe facer/beveler featuring Surefire quick change mounting pads for clean, square weld preps on 2” to 4” SCH 5/10 pipe. The through hardened mandrel, solid milled body with a heavy-duty gear set, and tapered roller bearings ensure rigidity and reliability. The machine is lightweight and has dual torque keys that prevent cutting vibrations producing smoother cuts.
Quick-Look Features
- Surefire Pads for equal distribution contact around the inner wall of the pipe or tube
- Mandrel shaft heat treated to Rc 50 for optimum strength, hardness, and minimum wear
- Heavy duty tapered mandrel and spindle bearings
- Mandrel shaft seal to keep coolants out of the gears
- Heat-treated mandrel mounting blocks for maximum life and secure mounting
- Heavy duty gear reduction for optimum performance
- ID Mounting Range 2” to 4” SCH 5/10 Pipe
- Cutting Style: Face and Bevel
- Motor Options: Corded Electric and Cordless Electric
- Manual 92-1983
Machine Package Includes:
- Surefire 4 Sub. Assembly
- Electric Motor Assembly
- Mandrel Assembly
- Wrench Kit
- Carrying Case
- Operator’s Manual
| Technical Specifications | ||
|---|---|---|
| Property | Inches | Metric |
| ID Mounting: | *2″ – 4″ pipe, SCH 5 and 10 2.157″-4.334″ | *(54.8 mm – 110.1 mm) |
| OD Machining (max): | 4.500″ | (114.3 mm) |
| ID Chamfering: | 1.600″ – 4.190″ | (40.6 mm – 106.4 mm) |
| Wall Thickness: | **.120″ | **(3.0 mm) |
| Axial Feed Travel: | 1.500″ | (38.1 mm) |
| Feed Rate: (Per Revolution) | .100″ | (2.5 mm) |
| Weight: | 25 lbs | (11.3 kg) |
| Cutting Head Toolbit slots: | 3 | |
| Rotating head diameter: 4.000″ head |
4.000″ | (101.6 mm) |
| Height over motor: | 23.13″ | (587.4 mm) |
| Machine Width: | 7.03″ | (178.4 mm) |
| Length over machine: | 16.45″ | (417.9 mm) |
| Minimum Electric Power: | 9.6A@115V-50/60Hz | |
| 5.7@220V-50/60Hz | ||
| *With optional accessory included | ||
| **For larger wall thickness, contact Tri Tool Inc or Antek Vietnam Technology for heavier wall procedures |
Thông tin bổ sung
| Brand | |
|---|---|
| Series |
Surefire 4 Series |
