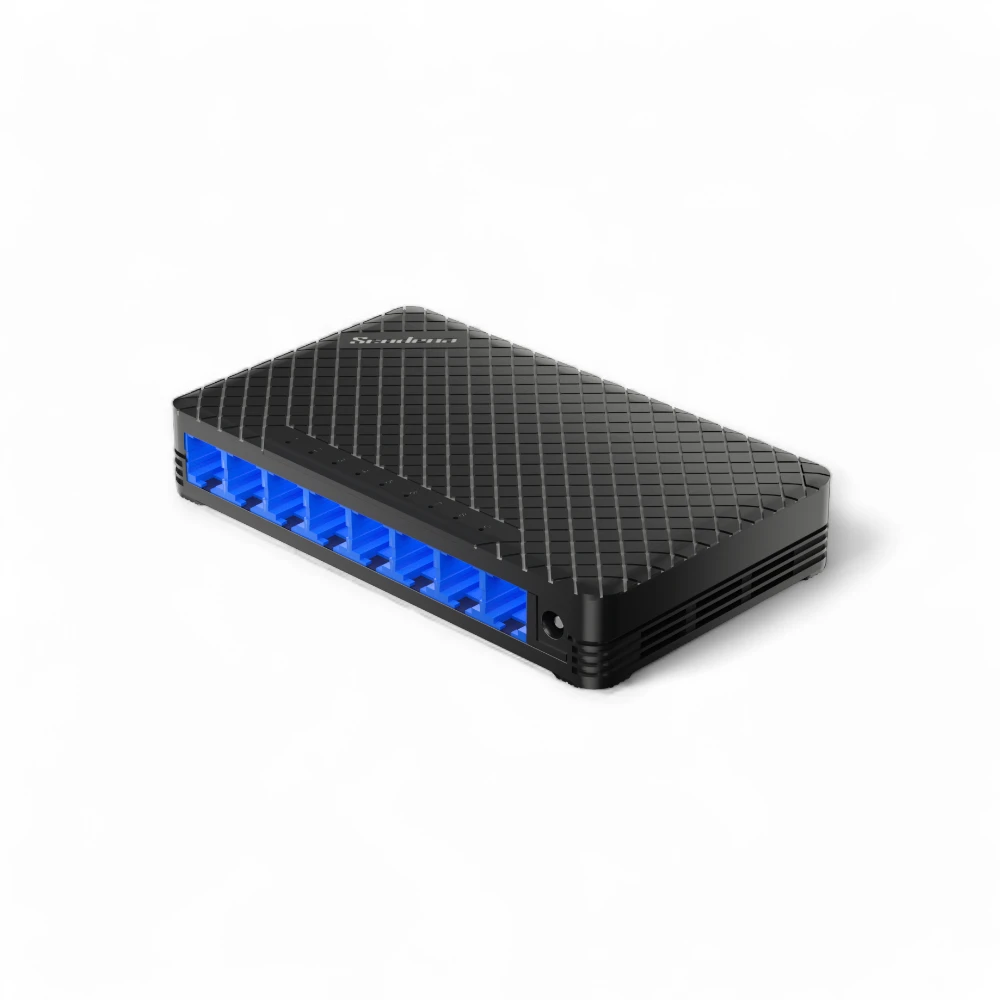

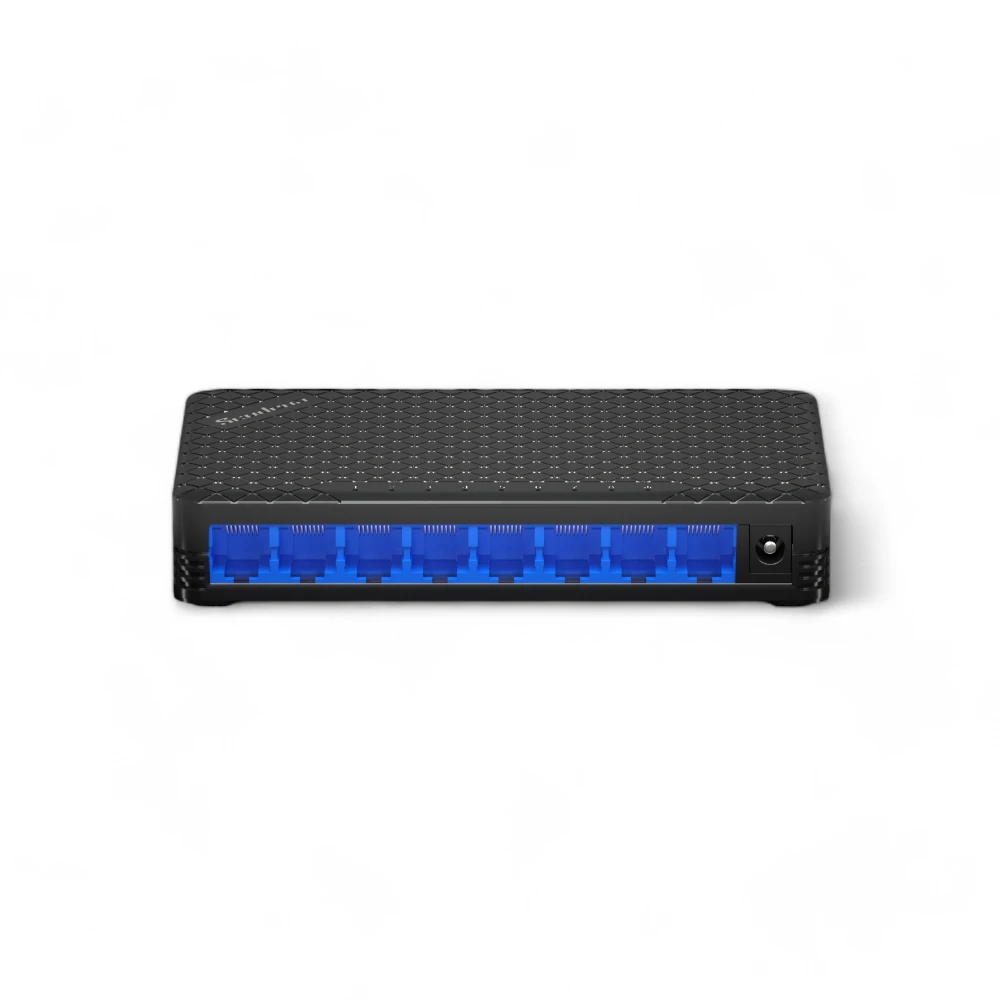

Scodeno Switch 8 port, Gigabit, None PoE, Management Support, Layer 2 switch, P/N S200-8GS
Scodeno Switch 8 port, Gigabit, None PoE, Management Support, Layer 2 switch, P/N S200-8GS - Ảnh 2

Scodeno Switch 8 port, Gigabit, None PoE, Management Support, Layer 2 switch, P/N S200-8GS

SKU: S200-8GS Thẻ: , , Brand:

S200-8GS is switch 8 port, main port speed gigabit, uplink ports Gigabit, None PoE, Unmanagement, Layer 2 switch.

1 People watching this product now!

Phương thức thanh toán:

payment-methods
Thêm vào so sánh
Yêu thích
Mô tả

Features:

Power Input: DC5V
Working temperature: -10℃ ~ 55℃
Shell: Fanless design
MTBF: 100000hours

Product Description:

This device adopts storage and forwarding, fanless design, support power indicator and network interface indicator. Plug and play, small and exquisite appearance, suitable for various home environments and enterprise use environments.

Specification S200-8GS

Provider Mode Port
Fixed Ports 8*10/100/1000 Base-T
Power interface DC terminal
LED Indicators
PWR Power indicator
Link/Act Link status indicator
Cable type&Transmission distance
Twisted-pair 0-100m (CAT5e,CAT6)
Electrical Specifications
Input voltage DC 5V
Total Power consumption Full load ≤3W
Layer 2 Switching
Switching capacity 16G
Packet forwarding rate 11.9Mpps
MAC address table 4K
Buffer 2M
Forwarding delay <5µs
MDX/MIDX Support
Jumbo Frame Support 9Kbytes
Environment
Operating temperature -10℃~55℃
Storage temperature -40℃~85℃
Relative humidity 10%~95% (non-condensing)
Thermal methods Fanless design, natural heat dissipation
MTBF 100,000 hours
Mechanical Dimensions
Product size 145*85*25mm
Installation Method Desktop
Weight 0.14KG around
Accessories
Accessories Device, Qualified certificate,
User Manual, power adapter
Thông tin bổ sung
Brand

Series Switch

S200
Number of Port

8
Main Port Speed

Gigabit
Uplink Ports

Gigabit
POE Support

None PoE
Management Support

Unmanagement
Layer Switch

Layer 2 switch
