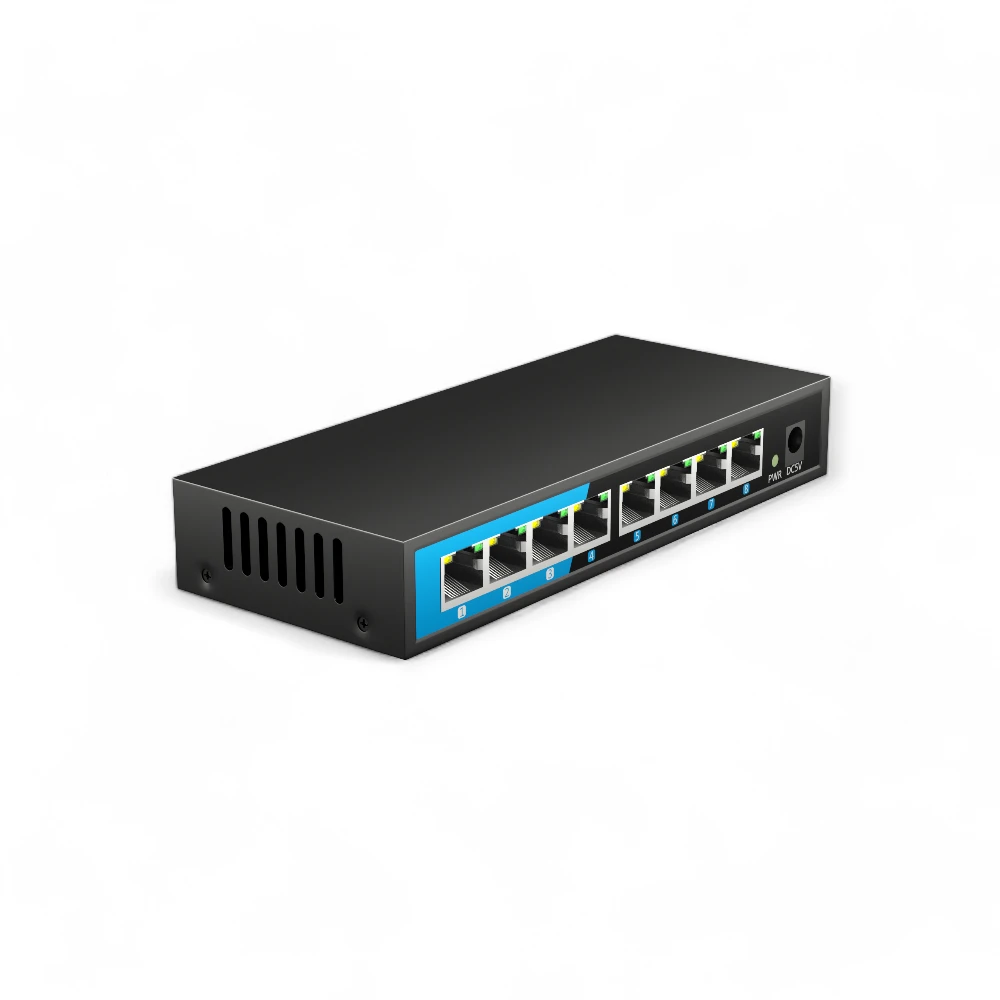

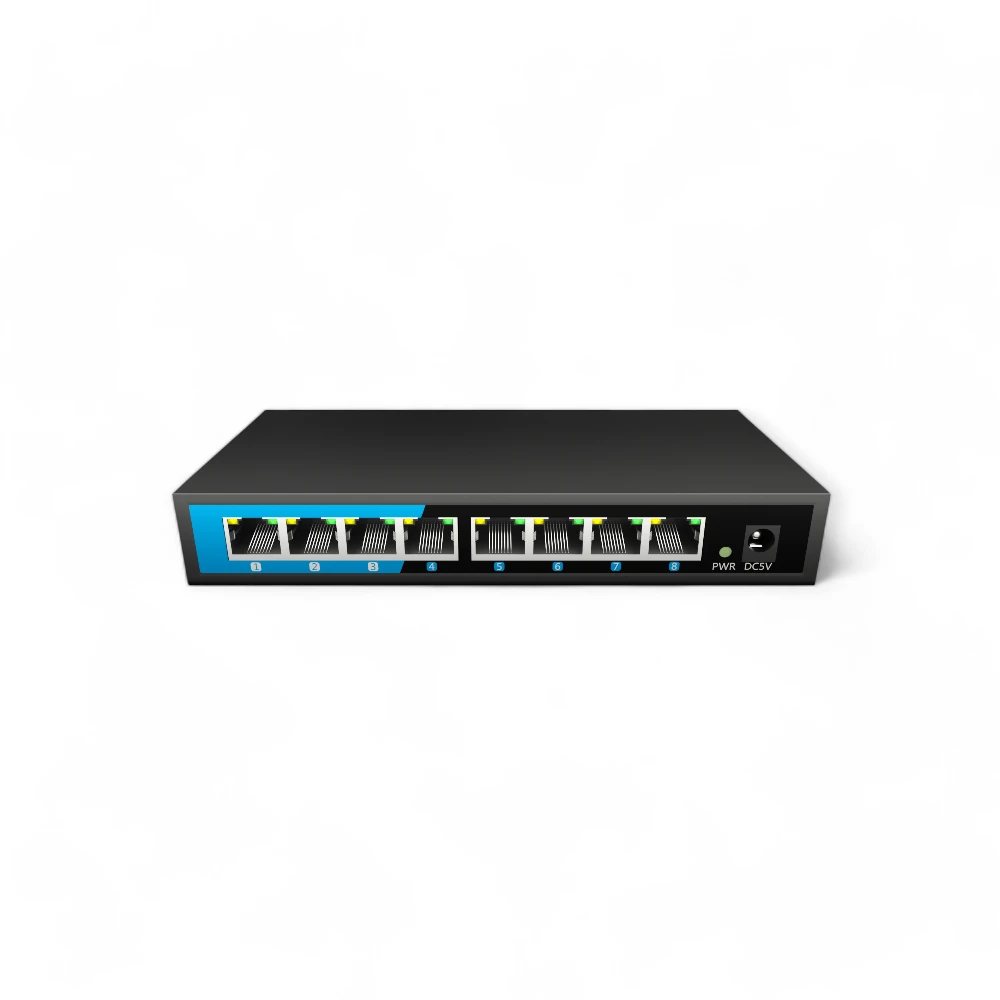

Scodeno Switch 8 port, Gigabit, None PoE, Management Support, Layer 2 switch, P/N S200-8G
S200-8G is switch 8 port, main port speed gigabit, uplink ports Gigabit, None PoE, Unmanagement, Layer 2 switch.
2
People watching this product now!
Phương thức thanh toán:
Mô tả
Features:
Input Voltage: DC5V
Operating Temperature: -10℃ ~ +50℃
Thermal Methods: Fanless design
Surge Protection: 6KV/4KV
Test Report: CCC, RoHS, FCC, CE
Product Description:
S200-8G series is non management switch with 8×10/100/1000Mbps adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. Store and forward to provide stable and reliable data transmission.
Specification S200-8G
| Fixed Ports | |
| Fixed Ports | 8*10/100/1000 Base-T |
| Power interface | DC connector |
| LED Indicator | |
| PER | Power indicator |
| Link/Act | Link status indicator |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m (CAT5e,CAT6) |
| Network Topology | |
| Ring topology | Not Support |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Electrical Specifications | |
| Input voltage | DC5V |
| Total Power consumption | ≤5W |
| Layer 2 Switching | |
| Switching capacity | 16G |
| Packet forwarding rate | 11.9Mpps |
| MAC address table | 4K |
| Buffer | 2M bytes |
| Forwarding delay | <10µs |
| MDX/MIDX | Support |
| Jumbo frame | 10K bytes |
| Environment | |
| Operating temperature | -10℃~+50℃ |
| Storage temperature | -40℃~+70℃ |
| Relative humidity | 10%~90% (non-condensing) |
| Thermal methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| EMC & Ingress Protection | |
| Surge protection for Ethernet port | Common mode 6KV; differential mode: 4KV |
| Surge protection for power | Common mode 6KV; differential mode: 4KV |
| DIP | IEC 61000-4-11 Level3 (10V) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free fall | 0.5m |
| Mechanical Dimensions | |
| Product size | 175*73*28mm(L*W*H) |
| Installation Method | Desktop/ Wall mounted |
| Weight | 0.35KG |
| Packing List | |
| Packing list | Device, Inspection Certificate, User manual, AC Power cord |
Thông tin bổ sung
| Brand | |
|---|---|
| Series Switch |
S200 |
| Number of Port |
8 |
| Main Port Speed |
Gigabit |
| Uplink Ports |
Gigabit |
| POE Support |
None PoE |
| Management Support |
Unmanagement |
| Layer Switch |
Layer 2 switch |
