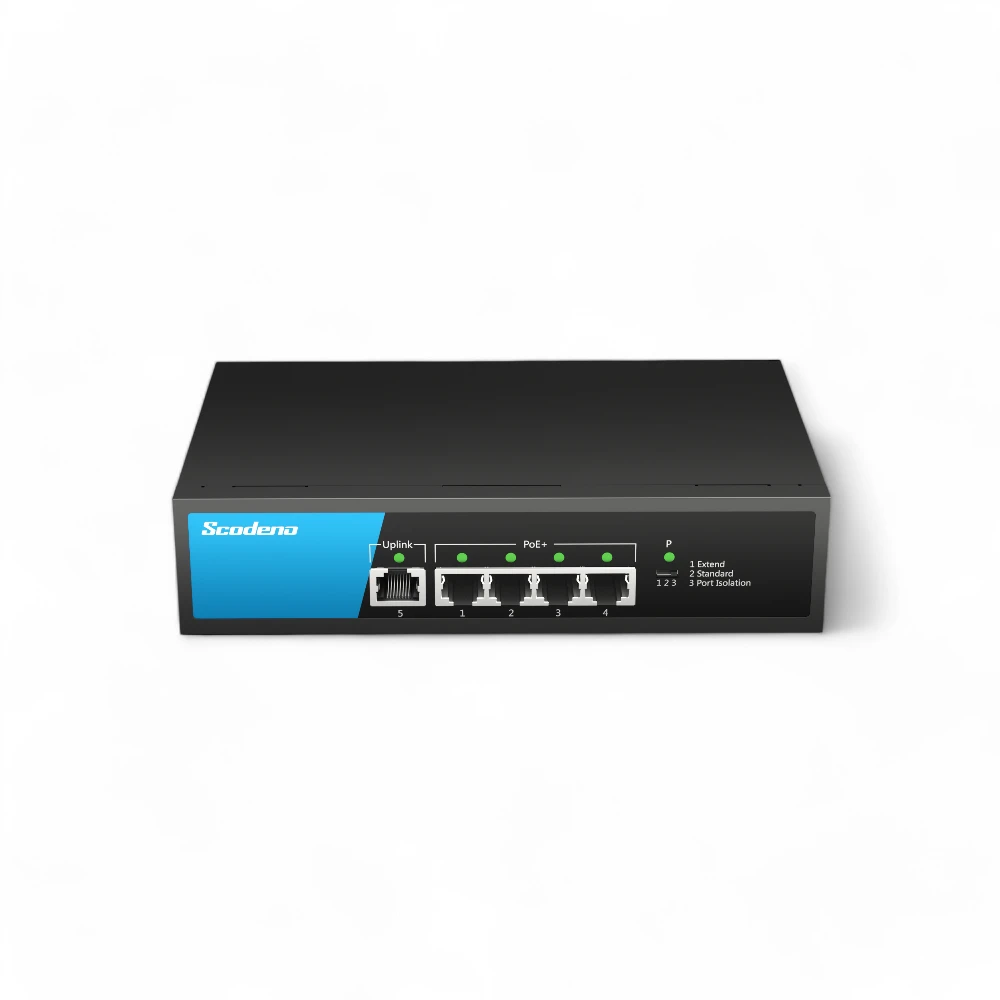

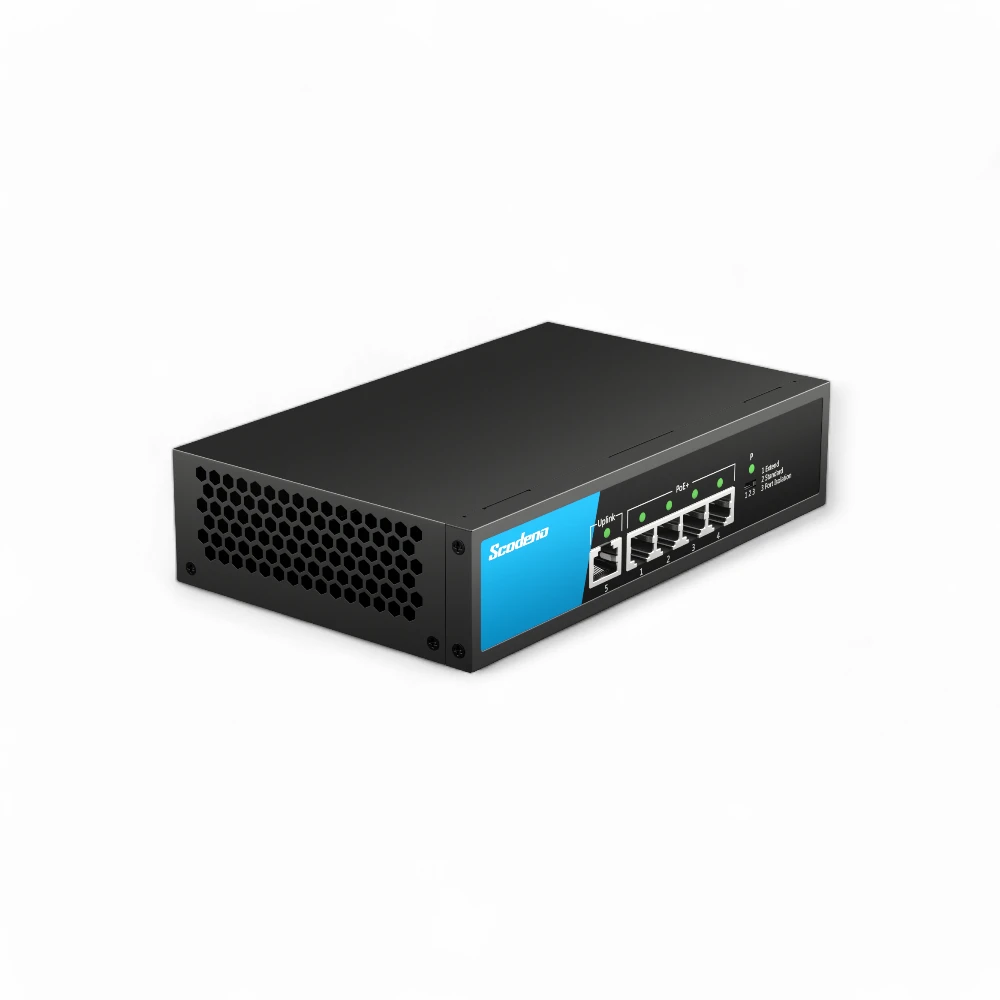

Scodeno Switch 5 port, Fast Ethernet, PoE, Management Support, Layer 2 switch, P/N S200-5TP-MAC
S200-5TP-MAC is switch 5 port, main port speed fast ethernet, uplink ports Fast Ethernet, PoE, Unmanagement, Layer 2 switch.
2
People watching this product now!
Phương thức thanh toán:
Mô tả
Features:
Input Voltage: AC 100-240V 50/60 Hz
Operating Temperature: -10℃ ~ +50℃
Thermal Methods: Fanless design
Surge Protection: 6KV/4KV
Test Report: CCC, RoHS, FCC, CE
Product Description:
S200-5TP-MAC series is non management PoE switch with 5×10/100/Mbps adaptive RJ45 ports, port 1-4 support PoE/PoE+, total 50W PoE consumption, port 5 is 10/100Mbps uplink ports. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. Store and forward to provide stable and reliable data transmission.
Specification S200-5TP-MAC
| Fixed Ports | |
| Fixed Ports | 5*10/100 Base-T |
| Power interface | AC100-240V triangle interface |
| LED Indicators | P , Active |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m/ 250m |
| Network Topology | |
| Ring topology | Not Support |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Electrical Specifications | |
| Input voltage | AC 100-240V 50/60Hz |
| Total Power consumption | <52W(PoE) |
| Main board power | <2W |
| PoE | |
| PoE protocol | 802.3AF，802.3AT |
| Pin Assignment | 12+ /36- |
| Pin port | 1-4 Port |
| Dialing switch Instruction | |
| 1 extend | 250m long distance transmission |
| 2 standard | Standard mode |
| 3 port isolation | 1-4 port port isolation |
| Layer 2 Switching | |
| Switching capacity | 1G |
| Packet forwarding rate | 0.744Mpps |
| MAC address table | 2K |
| Buffer | 768k bit |
| Jumbo frame | 2K bytes |
| Forwarding delay | <5µs |
| MDX/MIDX | Support |
| Storm control | Support |
| Environment | |
| Operating temperature | -10℃~+50℃ |
| Storage temperature | -40℃~+70℃ |
| Relative humidity | 5%~90% (non-condensing) |
| Thermal methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| EMC & Ingress Protection | |
| Surge protection of Power | Common mode 6KV, differential-mode 4KV |
| Surge protection of Ethernet port | Common mode 6KV, differential-mode 4KV |
| ESD | Contact 8KV, Air 15KV |
| Free fall | 0.5m |
| Mechanical Dimensions | |
| Product size | 190*140*44mm (LxWxH) |
| Installation Method | Desktop |
| Weight | 0.6KG |
| Packing List | |
| Packing list | Device, Inspection Certificate, User manual, Power cord |
Thông tin bổ sung
| Brand | |
|---|---|
| Series Switch |
S200 |
| Number of Port |
5 |
| Main Port Speed |
Fast Ethernet |
| Uplink Ports |
Fast Ethernet |
| POE Support |
PoE |
| Management Support |
Unmanagement |
| Layer Switch |
Layer 2 switch |
