Scodeno Switch 10 port, Gigabit, PoE, Management Support, Layer 3 switch, P/N S200-10GPM-S2-AC
S200-10GPM-S2-AC is switch 10 port, main port speed gigabit, uplink ports Gigabit, PoE, Management, Layer 3 switch.
2
People watching this product now!
Phương thức thanh toán:
Mô tả
Features:
Input Voltage: AC 100-240V 50/60Hz
Operating Temperature: -10℃ ~ +50℃
Heat Dissipation: Fan cooling
Certification: CCC/CE/FCC/RoHS
ESD: 8KV-15KV
MTBF: 100000H
Product Description:

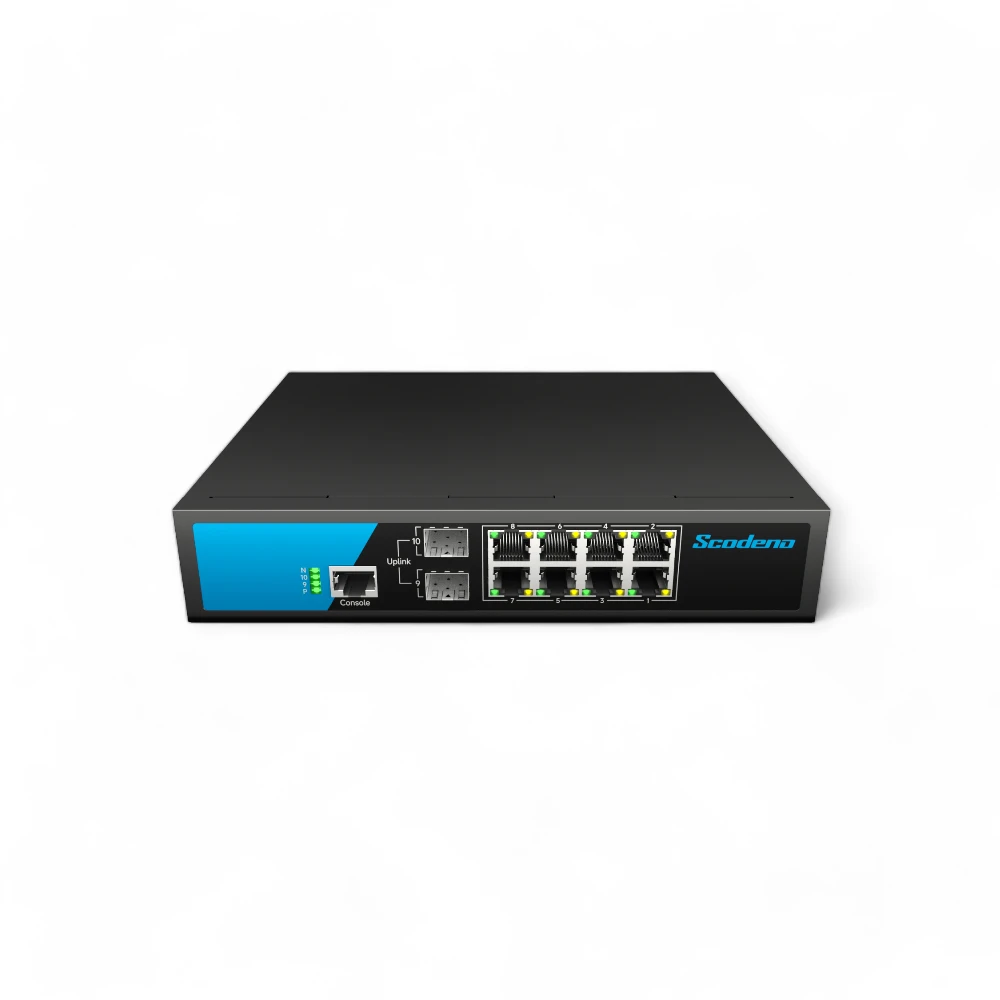

The S200-10GPM-S2-AC 10-Port Managed PoE+ Ethernet Switch is equipped with 8x 10/100/1000BASE-T ports, 2x 1000M SFP Uplinks. 8x RJ45 Ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+(up to 30W per Port) for powering attached IP phones, wireless access points, or other standards compliant PoE and PoE+ end network devices. The switch adopts the most cutting-edge Realtek chip.
This access switch delivers a compact, cost-effective solution for carrier’IP MAN and enterprise networks. Based on the high-performance hardware and management platform, it supports function such as ACL, QinQ and QoS. It’s simple management mode and flexible installation can meet the requirement of any scenario.
Specification S200-10GPM-S2-AC
| Provider Mode Ports | |
| Port type and quantity | 8*10/100/1000 Base-T + 2×1000 Base-X |
| Management Port | Support console |
| Power Supply | 100-240V/AC |
| LED Indicators | PWR, Link/ACT LED |
| Network Size – length of cable | |
| Twisted pair (TP): | 0-100m (CAT5e,CAT6) |
| Single mode Fiber (SMF): | 20/40/60/80/100KM |
| Multimode Fober (MMF): | 550m |
| Network Topology | |
| Ring topology | Support |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Hybrid topology | Support |
| Electrical Specifications | |
| Input voltage | AC 100-240V 50/60Hz |
| Power consumption: | <120W |
| Main board power | <10W |
| PoE Support | |
| PoE port | 1-8 Port |
| PoE Protocol | 802.3af，802.3at |
| Pin Assignment | 1,2+; 3,6- |
| PoE Management | Support |
| Layer 2 Switching | |
| Switching capacity | 20Gbps |
| Packet forwarding rate | 14.88Mpps |
| MAC address table | 8K |
| Buffer | 4.1M |
| Forwarding delay | <10µs |
| MDX/MIDX | Support |
| VLAN | 256 |
| GVRP VLAN | Support |
| Protocol VLAN | Support |
| Voice VLAN | Support |
| Surveillance VLAN | Support |
| MAC VLAN | Support |
| Ethert channel/ 802 .3ad | Support |
| LACP | Support |
| Interface Speed | Support |
| Duplex Mode | Support |
| Flow Control | Support |
| Jumbo frame | Support |
| DHCP Client | Support |
| SNTP Client | Support |
| Port Statistics | Support |
| Protected Ports | Support |
| EEE | Support |
| Ethernet Ring Protection Switching | Support |
| LLDP | Support |
| LLDP 802.1 TLV | Support |
| MSTP / RSTP / STP | Support |
| STP BPDU Filter | Support |
| STP BPDU guard | Support |
| STP Port Fast | Support |
| IGMP Snooping | Support |
| MLD Snooping | Support |
| MVR | Support |
| Layer 3 Route | |
| IPV4 management | Support |
| IPV6 management | Support |
| Static Routes IPv4 | 32 |
| Static Routes IPv6 | 32 |
| ARP | Support |
| Loopback Interface | Support |
| DHCP Server | Support |
| DNS Server | Support |
| DNS Client | Support |
| Convergence | |
| ACL | Support MAC Standard/Extended ACL |
| Support IPV4 Standard/Extended ACL | |
| Support IPV6 Standard/Extended ACL | |
| QoS | Support QoS Remarking |
| Support Port Trust | |
| Support Port bandwidth | |
| Support egress queuing bandwidth | |
| Support SP，WRR | |
| Support COS，DSCP，IP Priority | |
| Management | |
| User Management | Support |
| System Log | Support |
| Upgrade Firmware | Support |
| Configuration File Download/Upload | Support |
| SNMP | Support SNMP V1/V2/V3 |
| WEB | Support |
| Console | Support |
| CLI | Support |
| Telnet/SSH | Support |
| RMON | Support |
| Security | |
| management channel configuration | Support |
| AAA | Support |
| 802.1X | Support |
| MAC-Based | Support |
| WEB-Based | Support |
| DoS | Support |
| ARP | Support |
| DHCP Snooping | Support |
| IP Source Guard | Support |
| Port Security | Support |
| Protected Ports | Support |
| Storm control | Support |
| Equipment diagnosis | |
| Console log | Support |
| RMA log | Support |
| Flash log | Support |
| Port mirroring | Support 1:1 or 1:M |
| Ping | Support |
| Traceroute | Support |
| Copper port test | Support |
| SFP transceiver information | Support |
| UDLD protocol | Support |
| Environment | |
| Operate temperature | -10ºC to 50ºC |
| Storage temperature | -40ºC to 85ºC |
| Relative humidity | 10% to 90% RH |
| Heat Dissipation Method | Fanless, natural cooling |
| MTBF | 100,000H |
| Mechanical Dimensions | |
| Dimensions (WxHxD): | 220*161*44mm |
| Mounting | Desktop |
| Weight | 1kg |
| EMC & INGRESS PROTECTION | |
| Surge protection of Power | Common mode 6KV; differential mode: 4KV |
| Surge protection of Ethernet | Common mode 6KV; differential mode: 4KV |
| Electrostatic discharge (ESD) | 8 kV contact discharge，15 kV air discharge |
| Free fall | 0.5m |
| Accessories | |
| Accessories | Device, Power cord, User manual |
Thông tin bổ sung
| Brand | |
|---|---|
| Series Switch |
S200 |
| Number of Port |
10 |
| Main Port Speed |
Gigabit |
| Uplink Ports |
Gigabit |
| POE Support |
PoE |
| Management Support |
Management |
| Layer Switch |
Layer 3 switch |
