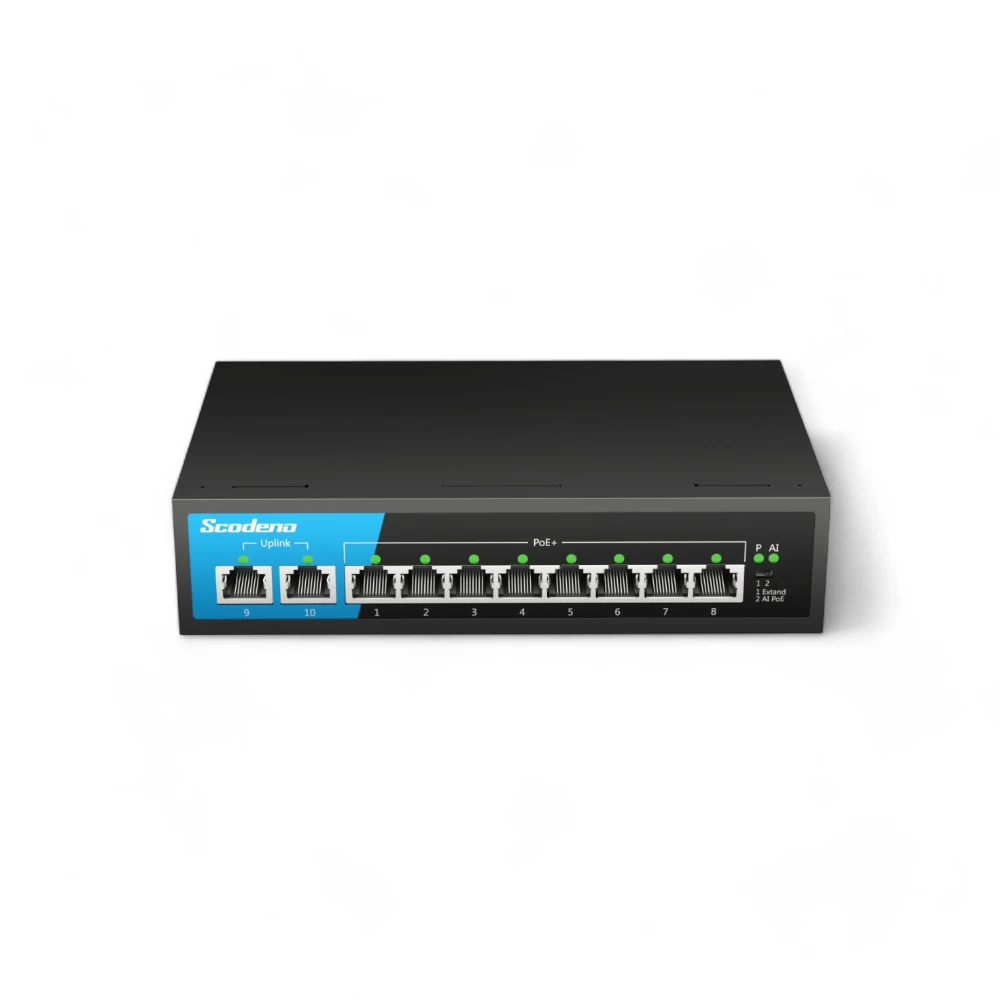

S200-10GP-MAC is switch 10 port, main port speed gigabit, uplink ports Gigabit, PoE, Unmanagement, Layer 2 switch.

2 People watching this product now!

Phương thức thanh toán:

payment-methods
Thêm vào so sánh
Yêu thích
Mô tả

Features:

Input Voltage: AC 100-240V 50/60 Hz
Operating Temperature: -10℃ ~ +50℃
Thermal Methods: Fanless design
Surge Protection: 6KV/4KV
Test Report: CCC, RoHS, FCC, CE

Product Description:

S200-10GP-MAC series is non management PoE switch with 10×10/100/Mbps adaptive RJ45 ports, port 1-8 support PoE/PoE+, total 135W power consumption, port 9-10 is 10/100/1000Mbps uplink ports. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. Store and forward to provide stable and reliable data transmission.

Specification S200-10GP-MAC

Fixed Ports
Fixed Ports 10*10/100/1000 Base-T
Power interface AC100-240V triangle interface
LED Indicators P , Active
Cable Type & Transmission Distance
Twisted-pair 0-100m/ 250m
Network Topology
Ring topology Not Support
Star topology Support
Bus topology Support
Tree Topology Support
Electrical Specifications
Input voltage AC 100-240V 50/60Hz
Total Power consumption <135W(PoE)
Main board power <7W
PoE
PoE protocol 802.3AF，802.3AT
Pin Assignment 12+ /36-
Pin port 1-8 Port
Dialing switch Instruction
1 Port 1-8 250m long distance transmission
2 Auto detect and reboot the unresponsive PoE devices for recovery
Layer 2 Switching
Switching capacity 20G
Packet forwarding rate 14.88Mpps
MAC address table 2K
Buffer 1M
Jumbo frame 2K bytes
Forwarding delay <10µs
MDX/MIDX Support
Environment
Operating temperature -10℃~+50℃
Storage temperature -40℃~+70℃
Relative humidity 5%~90% (non-condensing)
Thermal methods Fanless design, natural heat dissipation
MTBF 100,000 hours
EMC & Ingress Protection
Surge protection of Power Common mode 6KV, differential-mode 4KV
Surge protection of Ethernet port Common mode 6KV, differential-mode 4KV
ESD Contact 8KV, Air 15KV
Free fall 0.5m
Mechanical Dimensions
Product size 190*140*44mm (LxWxH)
Installation Method Desktop
Weight 0.6KG
Packing List
Packing list Device, Inspection Certificate, User manual, Power cord
Thông tin bổ sung
Brand

Series Switch

S200
Number of Port

10
Main Port Speed

Gigabit
Uplink Ports

Gigabit
POE Support

PoE
Management Support

Unmanagement
Layer Switch

Layer 2 switch
