Scodeno Switch 10 port, Gigabit, PoE, Management Support, Layer 2 switch, P/N S200-10GP-MAC
Scodeno Switch 10 port, Gigabit, PoE, Management Support, Layer 2 switch, P/N S200-10GP-MAC
Scodeno Switch 10 port, Gigabit, PoE, Management Support, Layer 2 switch, P/N S200-10GP-AC - Ảnh 1
Scodeno Switch 10 port, Gigabit, PoE, Management Support, Layer 2 switch, P/N S200-10GP-AC - Ảnh 2
Scodeno Switch 10 port, Gigabit, PoE, Management Support, Layer 2 switch, P/N S200-10GP-AC
Scodeno Switch 10 port, Gigabit, PoE, Management Support, Layer 2 switch, P/N S200-10GP-AC - Ảnh 2

Scodeno Switch 10 port, Gigabit, PoE, Management Support, Layer 2 switch, P/N S200-10GP-AC

SKU: S200-10GP-AC Thẻ: , , Brand:

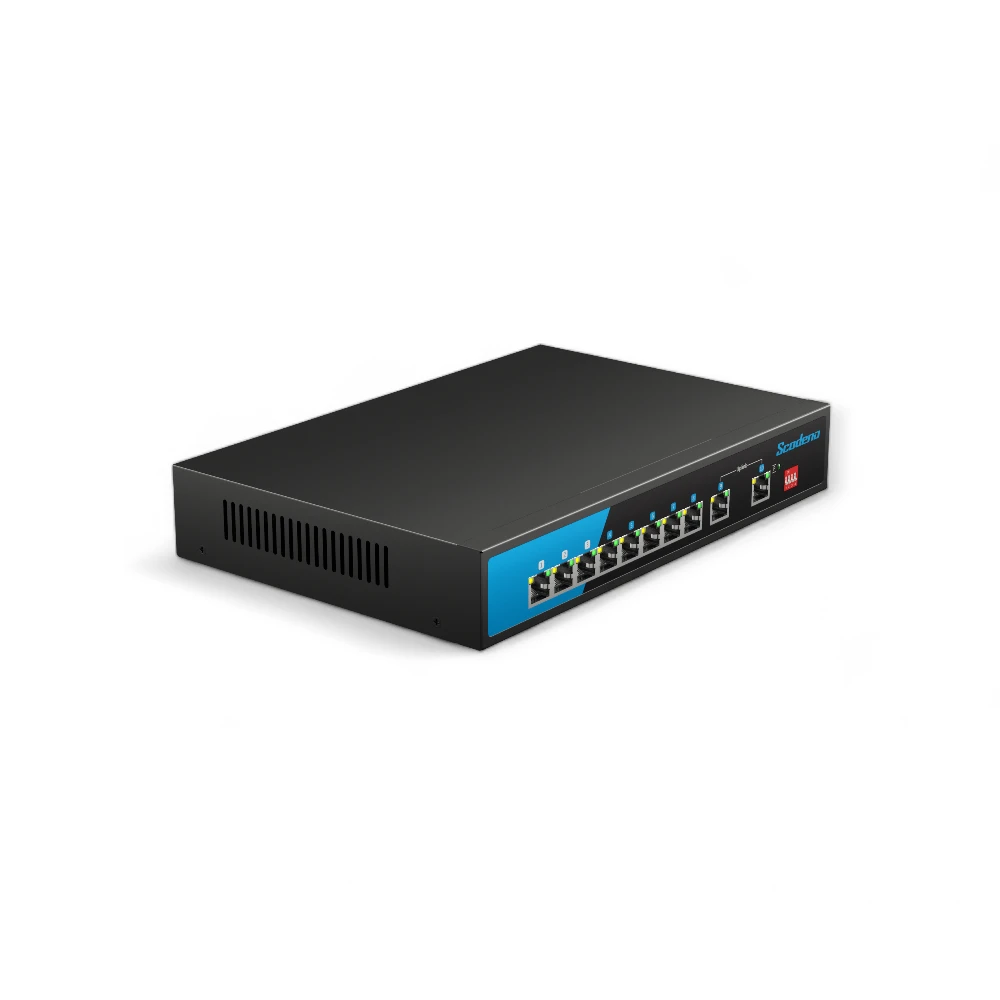

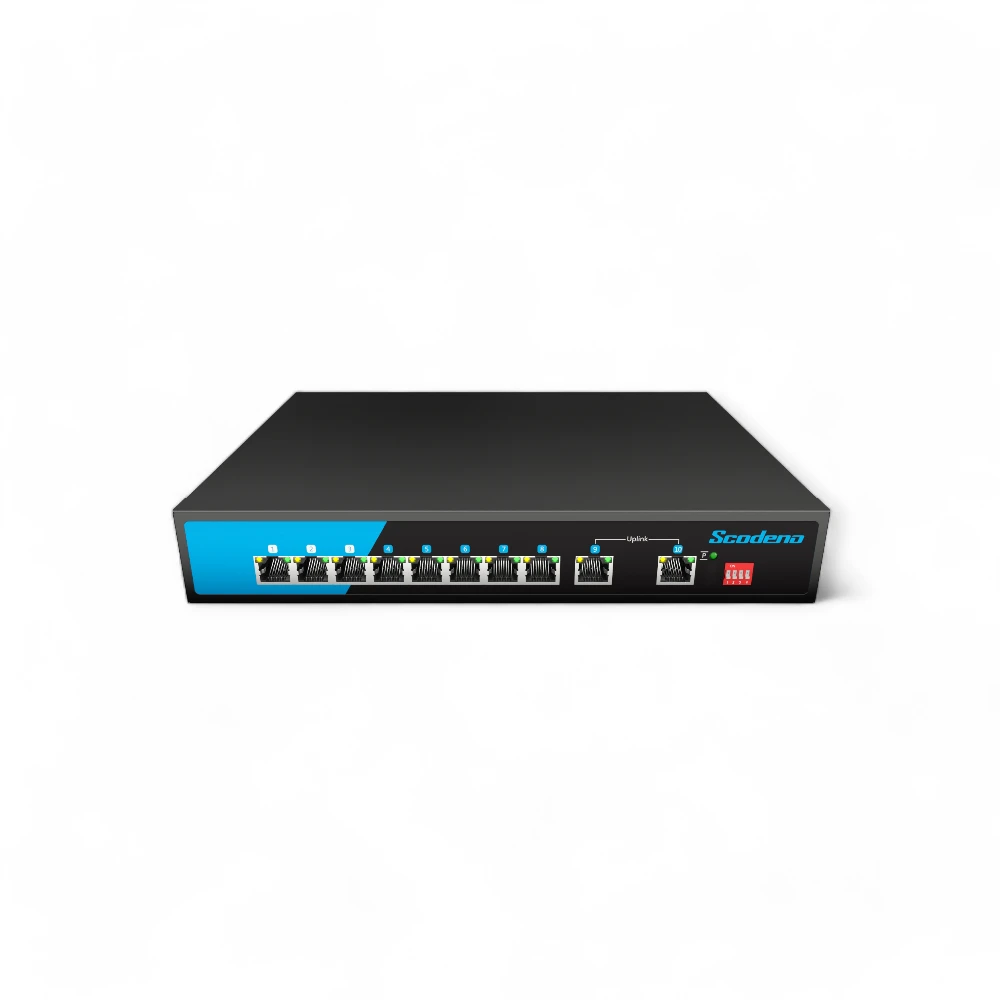

S200-10GP-AC is switch 10 port, main port speed gigabit, uplink ports Gigabit, PoE, Unmanagement, Layer 2 switch.

1 People watching this product now!

Phương thức thanh toán:

payment-methods
Thêm vào so sánh
Yêu thích
Mô tả

Features:

Input Voltage: AC 100-240V 50/60 Hz
Operating Temperature: -10℃ ~ +50℃
Thermal Methods: Fanless design
Surge Protection: 6KV/4KV
Test Report: CCC, RoHS, FCC, CE

Product Description:

S200-10GP-AC series is non management PoE switch with 8×10/100/1000Mbps adaptive RJ45 ports, port 1-8 support PoE/PoE+, ports 9-10 are 10/100/1000M uplink ports. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. Store and forward to provide stable and reliable data transmission.

Specification S200-10GP-AC

Fixed Ports
Fixed Ports 10*10/100/1000 Base-T
Power interface AC100-240V triangle interface
LED Indicators P , Active, Speed
Cable Type & Transmission Distance
Twisted-pair 0-100m/ 250m
Network Topology
Ring topology Not Support
Star topology Support
Bus topology Support
Tree Topology Support
Electrical Specifications
Input voltage AC 100-240V 50/60Hz
Total Power consumption <120W
Main board power <6W
PoE
PoE protocol 802.3AF，802.3AT
Pin Assignment 12+ / 36-
Pin port 1-8 Port
Dialing switch Instruction
1 AI POE (Auto detect and reboot the unresponsive PoE devices for recovery)
2 1-8 port 250m transmission
3 1-8 port port isolation
4 Storm control
Layer 2 Switching
Switching capacity 20G
Packet forwarding rate 14.88Mpps
MAC address table 4K
Forwarding delay <10µs
MDX/MIDX Support
Environment
Operating temperature -10℃~+50℃
Storage temperature -40℃~+70℃
Relative humidity 10%~90% (non-condensing)
Thermal methods Fanless design, natural heat dissipation
MTBF 100,000 hours
EMC & Ingress Protection
Surge protection for Ethernet port Common mode 6KV; differential mode: 4KV
Surge protection for Power Common mode 6KV; differential mode: 4KV
DIP IEC 61000-4-11 Level3 (10V)
ESD IEC 61000-4-2 Level 4 (8K/15K)
Free fall 0.5m
Mechanical Dimensions
Product size 270*181*44mm (LxWxH)
Installation Method Desktop
Weight 1.1KG
Packing List
Packing list Device, Inspection Certificate, User manual, Power cord
Thông tin bổ sung
Brand

Series Switch

S200
Number of Port

10
Main Port Speed

Gigabit
Uplink Ports

Gigabit
POE Support

PoE
Management Support

Unmanagement
Layer Switch

Layer 2 switch
Đánh giá (0)
0 reviews
0
0
0
0
0

Đánh giá

Clear filters

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và đã mua sản phẩm này mới có thể để lại đánh giá.

Download

Download datasheet
