PFM2432 TERRAMAX™ (P/N: 01-2480)

PFM2432 TERRAMAX™

• 1 each Model PFM2432 Sub-Assembly
• 3 each I.D. Tracking Tool Module Assembly 1 each Mandrel Head Assembly
• 1 each Hydraulically Powered Mandrel Head Shaft Assembly for 24”-48”
• 1 each Face Plate for 24”-36”
• 1 each Lathe Lifting Frame Assembly
• 2 each Drive Motor Assembly 1 each Wrench Kit 1 each Operator’s Manual

MODEL TERRAMAX® SYSTEM

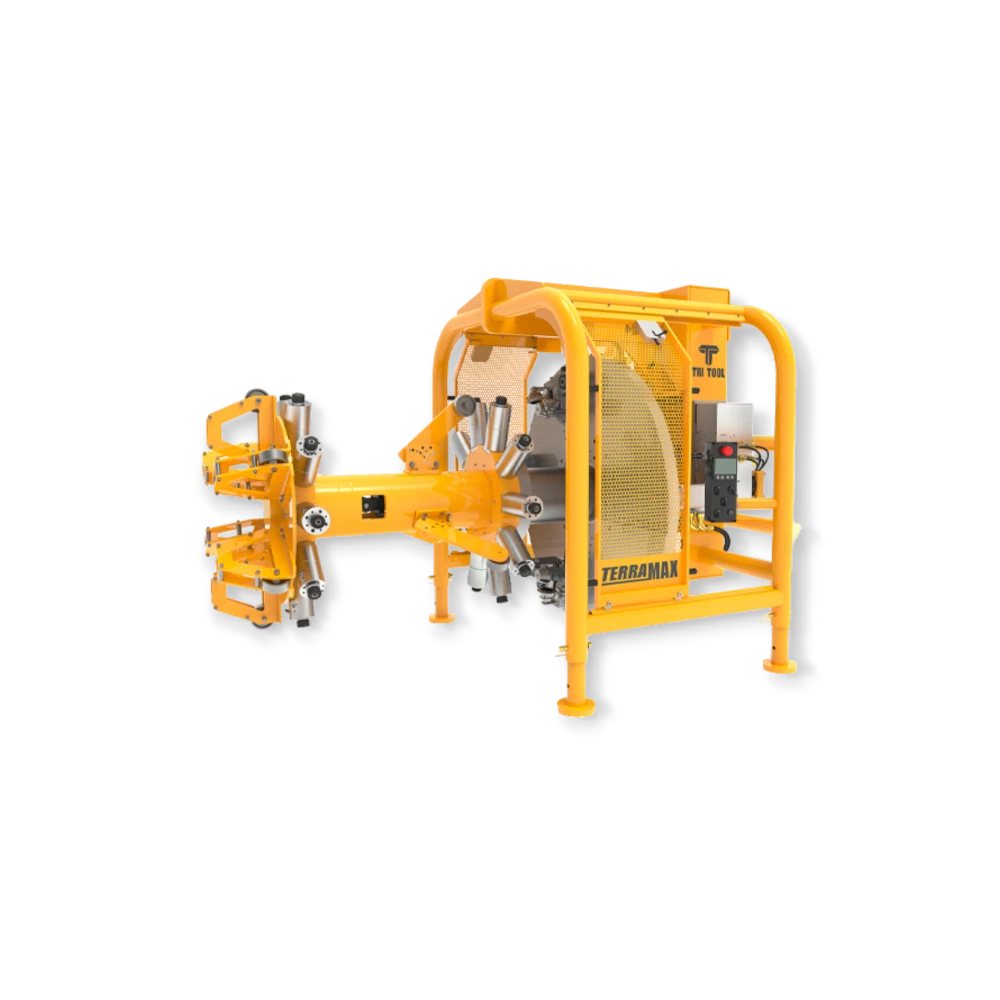

The Model PFM 2448 TERRAMAX® System is a portable ID mount machine tool for beveling and facing 24” through 48” pipe. The tool’s twin hydraulic motor drives power helical drive gears at- tached to the main spindle for smoother power delivery and optimal surface finish. A large diameter, single hydraulic cylinder with rapid and slow feed control, advance and feed the cutting head into the pipe. A large diameter mandrel shaft provides optimum stability during heavy cutting operations. An integrated flow control manifold minimizes hydraulic connections. The lift- ing frame does not require removal or separate lay down stands. The tool can be lifted for mount- ing in horizontal, vertical-up, or vertical-down positions for prepping onsite pipes.

Quick-Look Features

• ID Mounted
• Mounting Range: 20.809” – 47.429” (528.5mm – 1204.7mm)
• Pipe Range: 24.00” – 48.00” (609.60mm – 1219.20mm)
• Cutting Style: Face and Bevel
• Max Wall Thickness: 1.250” (31.8mm)
• Motor Options: Diesel Hydraulic and Excavator/Track Layer
• Manual 92-1879

Functional system must include 01-Level, insert(s), and a HPU for diesel hydraulic option, or hose kit and umbilical for excavator/track layer

Requires Hydraulic Power Supply

The hydraulic system requires simple fixed-volume pressure supply and may be powered with either a Tri Tool Diesel or Electric HPU, a third-party power unit, or with most auxiliary hydraulic systems available on larger industrial construction equipment, such as an excavator or loader.

Machine Package Includes:

• Model PFM 3248 Sub Assembly
• (4) I.D. Tracking Module Assembly
• Hydraulically Powered Mandrel Head Shaft Assembly for 24″ – 48″
• Tool Spacer Kit
• Drive Motor asssembly
• Wrench Kit
• Operator’s Manual
